Return Loss Measurement Calibration Measurements

170 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

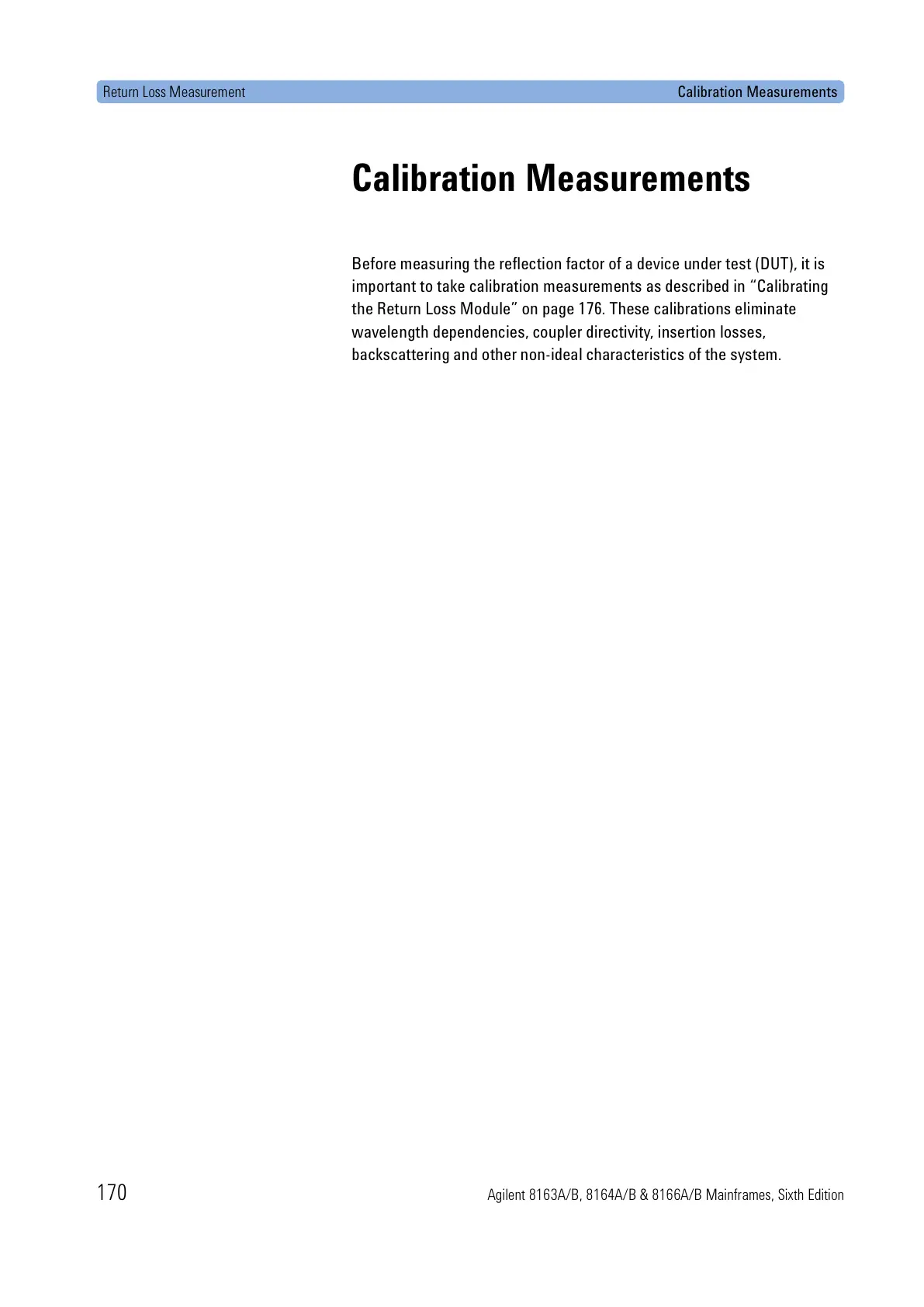

Calibration Measurements

Before measuring the reflection factor of a device under test (DUT), it is

important to take calibration measurements as described in “Calibrating

the Return Loss Module” on page 176. These calibrations eliminate

wavelength dependencies, coupler directivity, insertion losses,

backscattering and other non-ideal characteristics of the system.
