Working with Application Graphs Applications

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 241

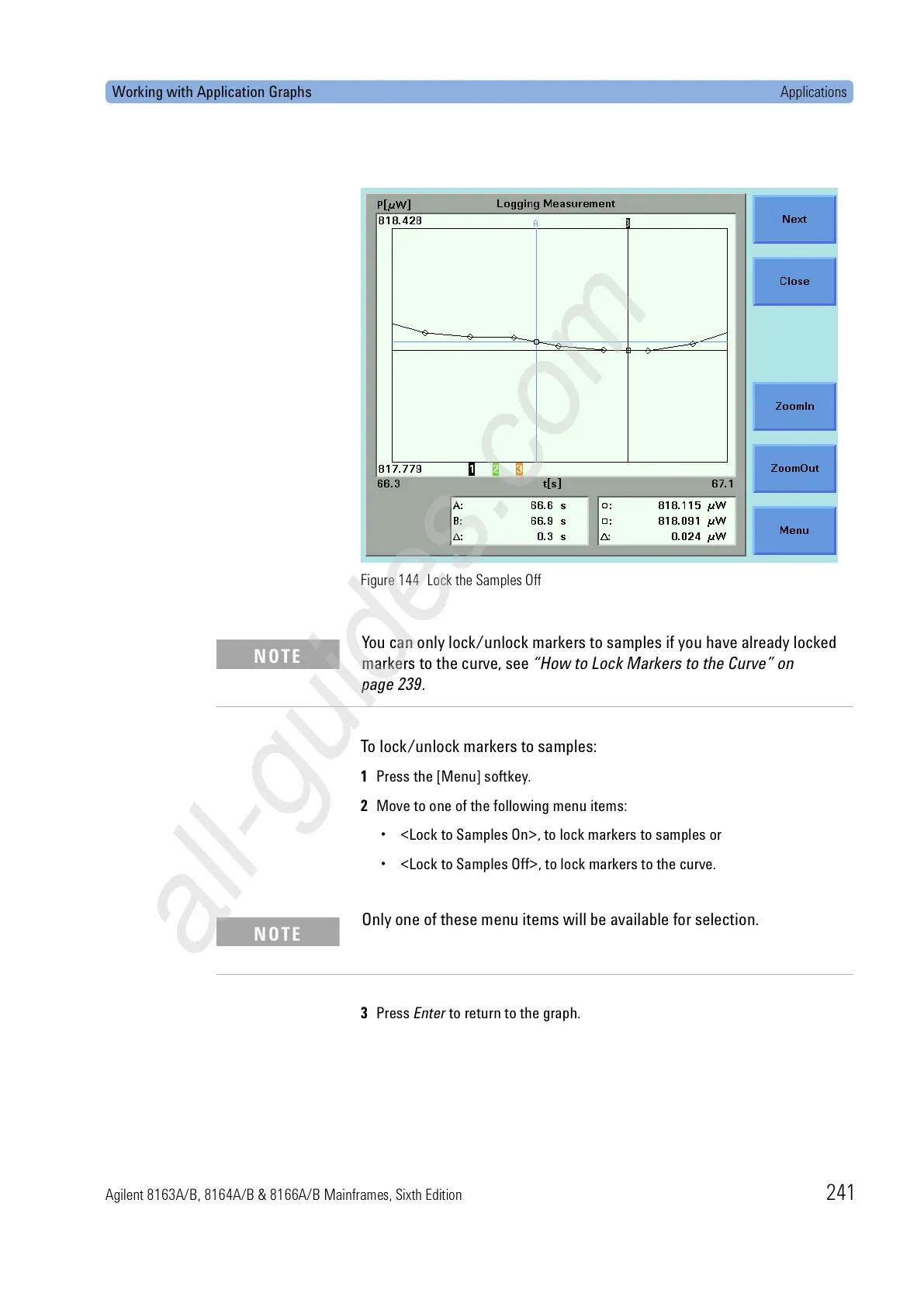

Figure 144 Lock the Samples Off

To lock/unlock markers to samples:

1 Press the [Menu] softkey.

2 Move to one of the following menu items:

• <Lock to Samples On>, to lock markers to samples or

• <Lock to Samples Off>, to lock markers to the curve.

3 Press Enter to return to the graph.

You can only lock/unlock markers to samples if you have already locked

markers to the curve, see “How to Lock Markers to the Curve” on

page 239.

NOTE

Only one of these menu items will be available for selection.
