Applications The PACT Application
270 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
output of the high power optical output can be regulated, and
•<Both (master:1)>, where both optical outputs can be enabled but only the
output of the low SSE optical output can be regulated.
•Press Enter.
How to Measure the Reference
19Press [Reference].

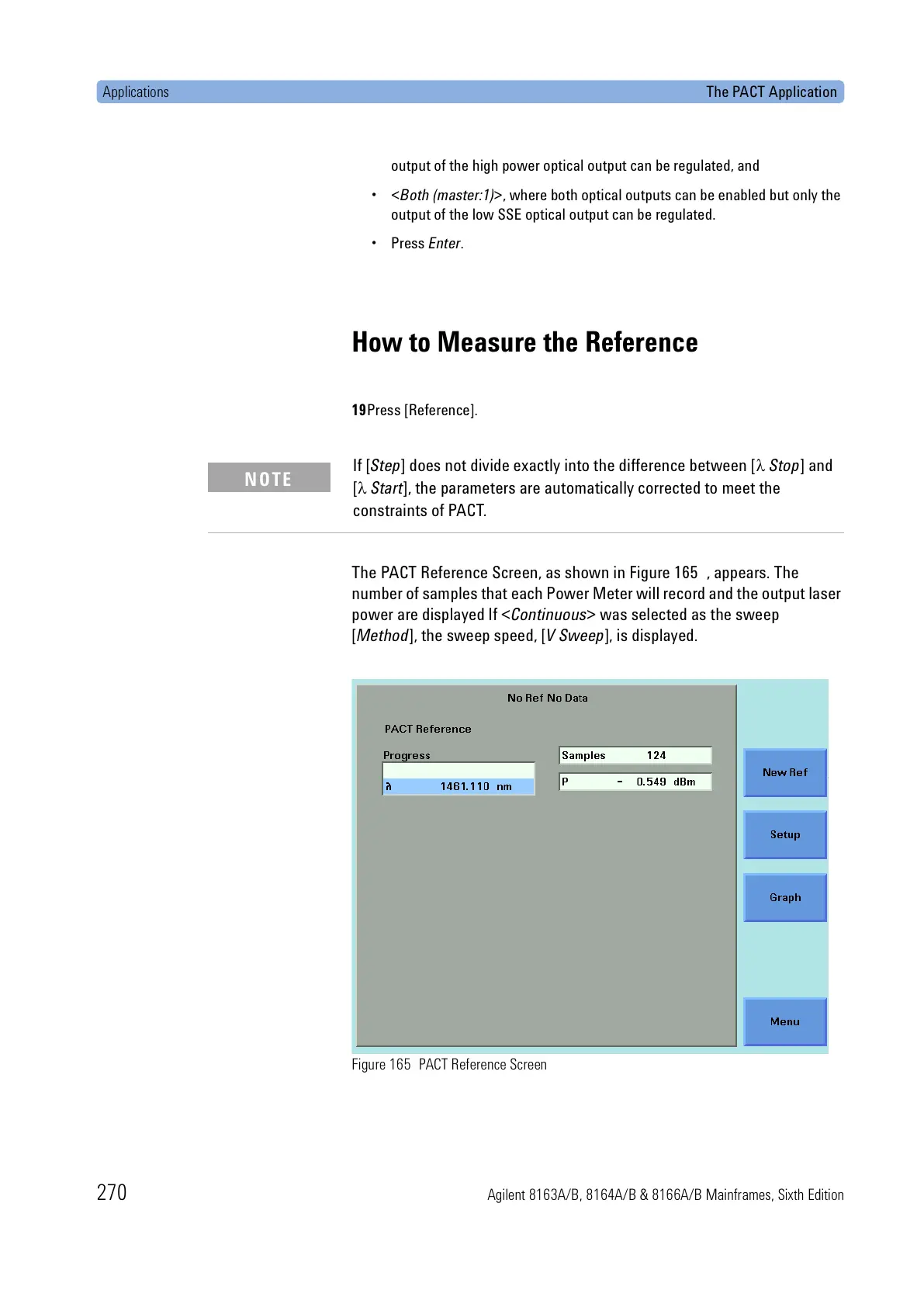

The PACT Reference Screen, as shown in Figure 165 , appears. The
number of samples that each Power Meter will record and the output laser
power are displayed If <Continuous> was selected as the sweep
[Method], the sweep speed, [VSweep], is displayed.
Figure 165 PACT Reference Screen
If [Step] does not divide exactly into the difference between [λ Stop] and
[λ Start], the parameters are automatically corrected to meet the
constraints of PACT.
NOTE
