Error Messages Screen Status Messages
382 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

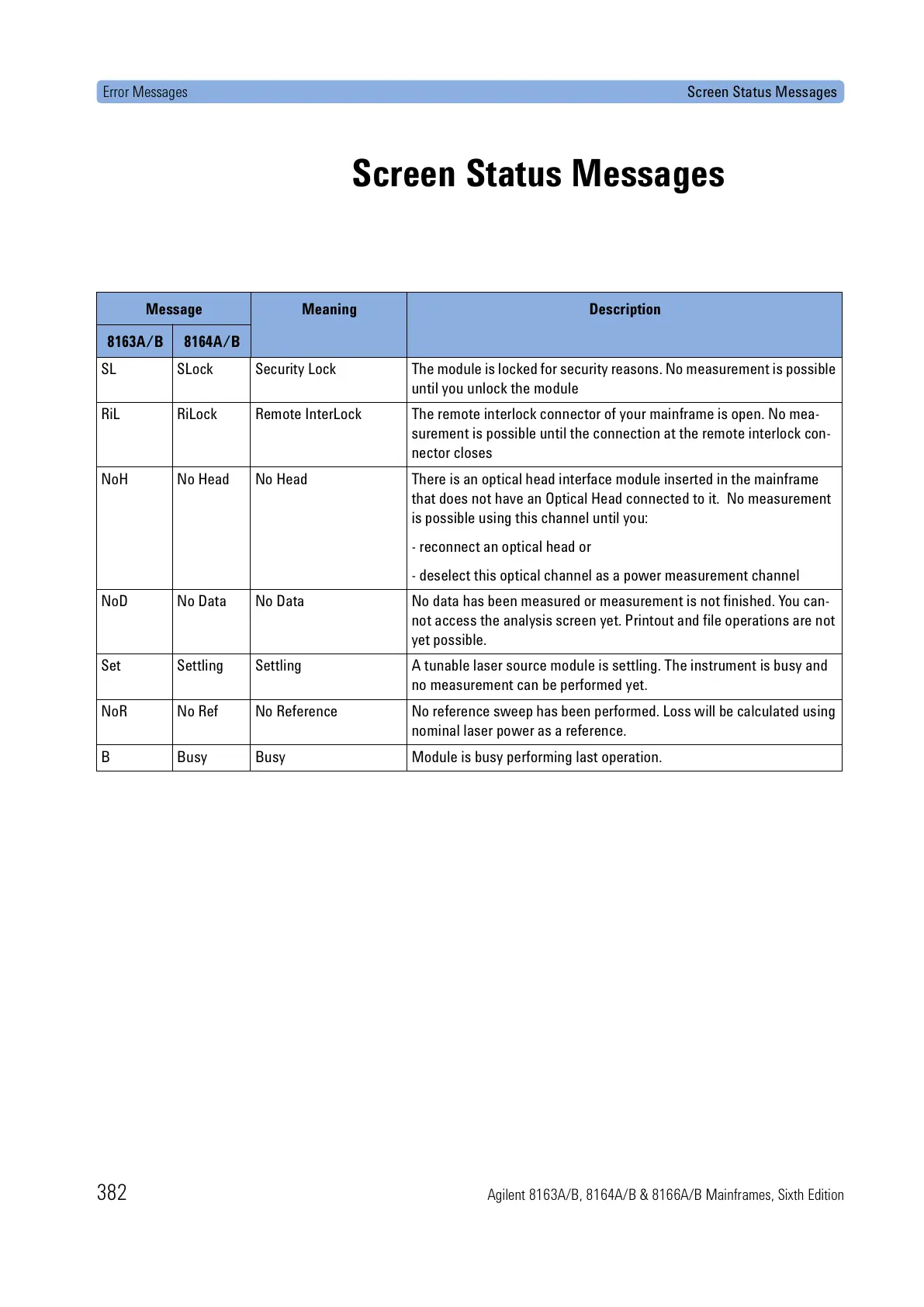

Screen Status Messages
Message Meaning Description
8163A/B 8164A/B
SL SLock Security Lock The module is locked for security reasons. No measurement is possible
until you unlock the module
RiL RiLock Remote InterLock The remote interlock connector of your mainframe is open. No mea-
surement is possible until the connection at the remote interlock con-
nector closes
NoH No Head No Head There is an optical head interface module inserted in the mainframe
that does not have an Optical Head connected to it. No measurement
is possible using this channel until you:
- reconnect an optical head or
- deselect this optical channel as a power measurement channel
NoD No Data No Data No data has been measured or measurement is not finished. You can-
not access the analysis screen yet. Printout and file operations are not
yet possible.
Set Settling Settling A tunable laser source module is settling. The instrument is busy and
no measurement can be performed yet.
NoR No Ref No Reference No reference sweep has been performed. Loss will be calculated using
nominal laser power as a reference.
B Busy Busy Module is busy performing last operation.
