A Description of the User Interface Getting Started

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 47

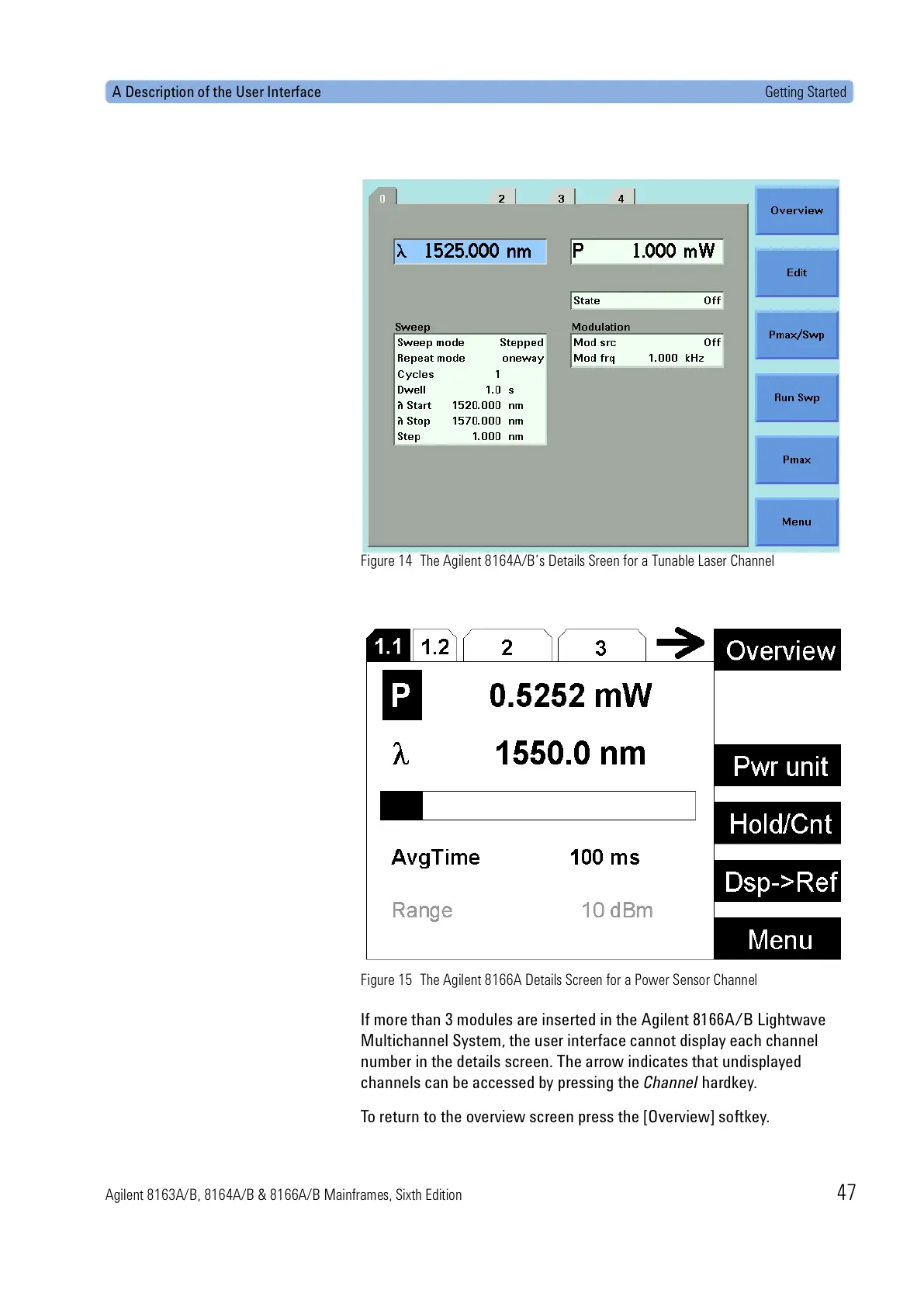

Figure 14 The Agilent 8164A/B’s Details Sreen for a Tunable Laser Channel

Figure 15 The Agilent 8166A Details Screen for a Power Sensor Channel

If more than 3 modules are inserted in the Agilent 8166A/B Lightwave

Multichannel System, the user interface cannot display each channel

number in the details screen. The arrow indicates that undisplayed

channels can be accessed by pressing the Channel hardkey.

To return to the overview screen press the [Overview] softkey.
