Applications The Stability Application

256 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

How to Set Up a Stability Function

To set up a stability function:

1 Press the Appl hardkey. The Applications menu, as shown in Figure 146 ,

appears.

Move to <Stability> and press Enter. The Stability Setup Screen, as shown

in Figure 156 , appears.

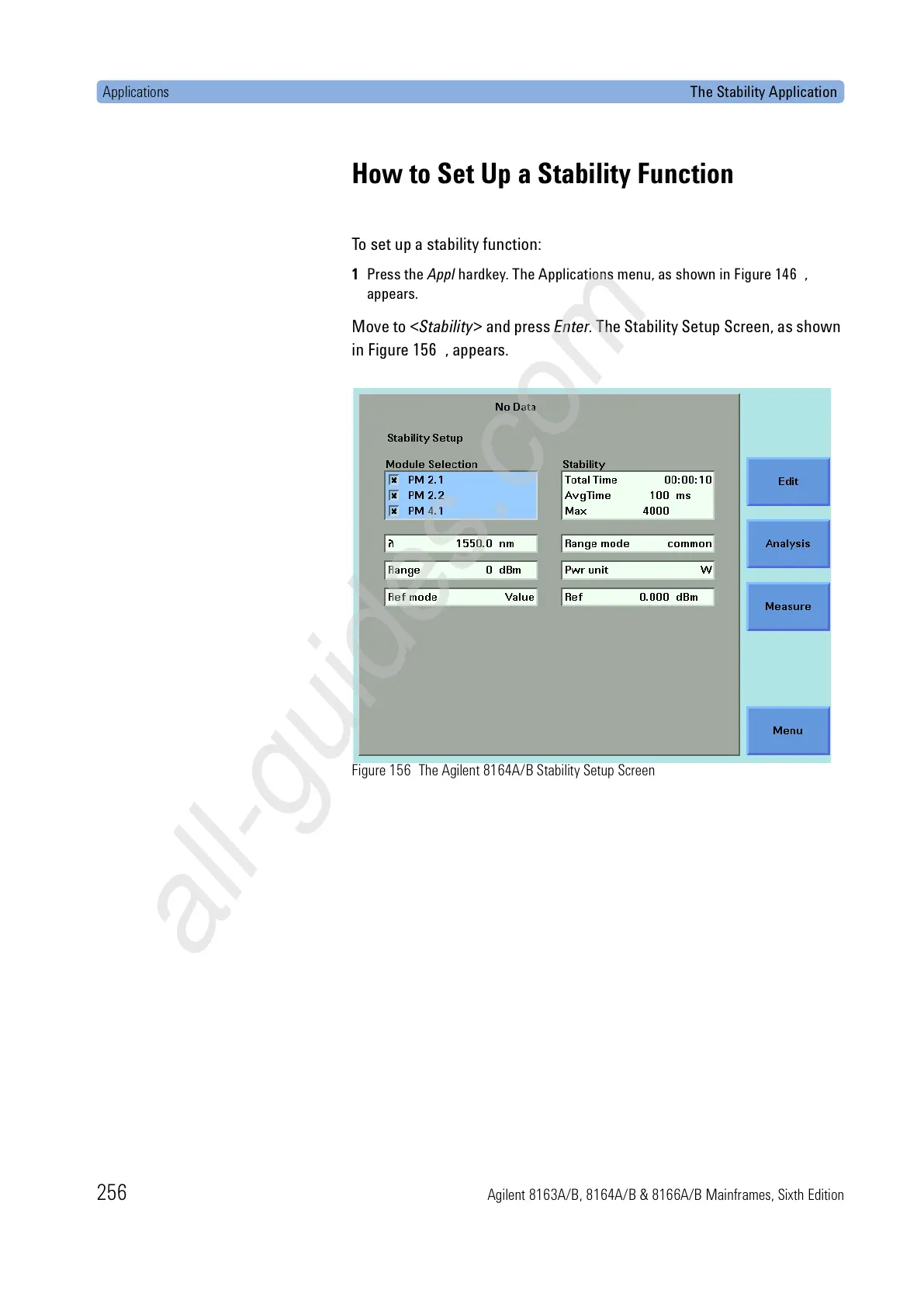

Figure 156 The Agilent 8164A/B Stability Setup Screen
