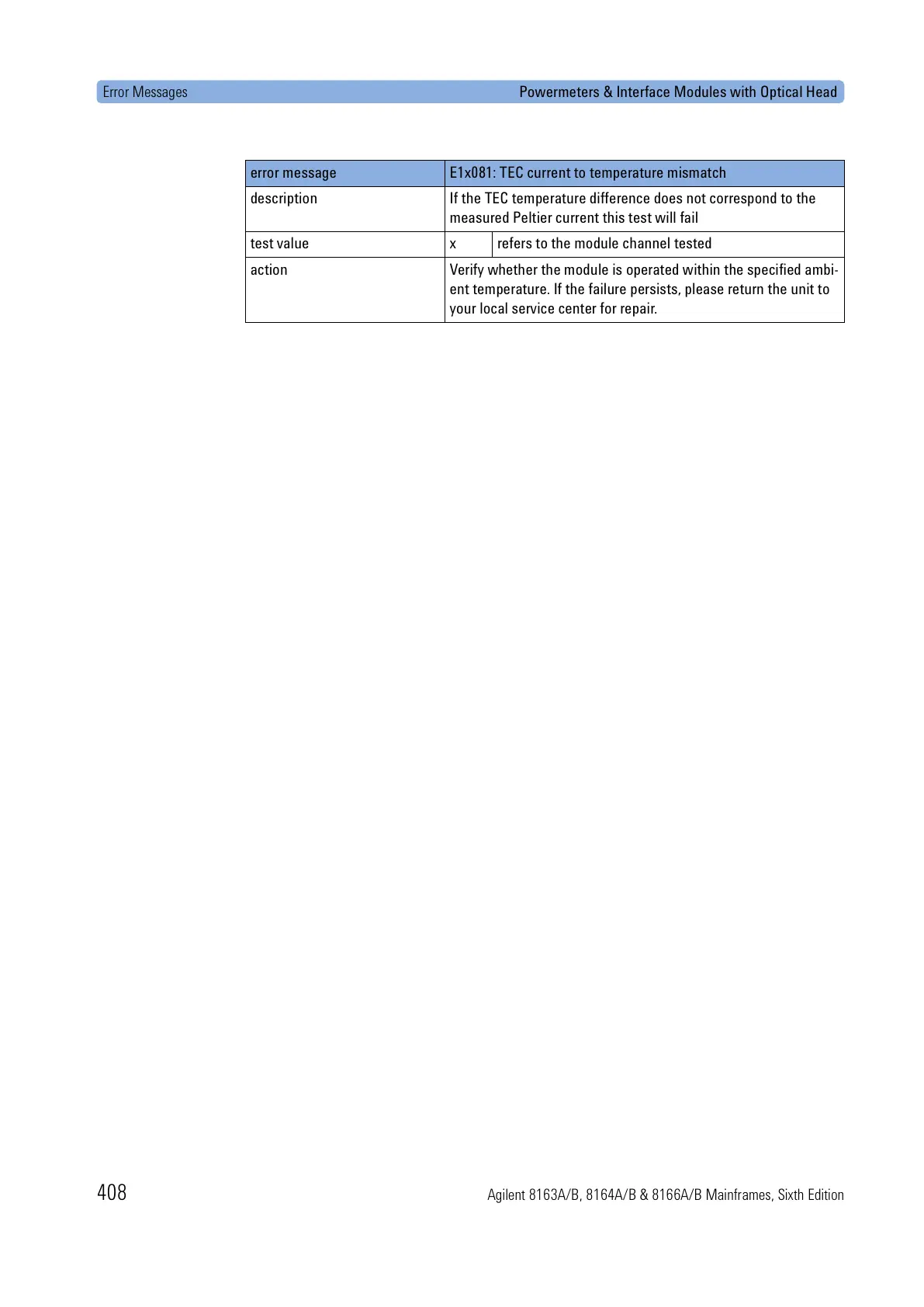

Error Messages Powermeters & Interface Modules with Optical Head

408 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

error message E1x081: TEC current to temperature mismatch

description If the TEC temperature difference does not correspond to the

measured Peltier current this test will fail

test value x refers to the module channel tested

action Verify whether the module is operated within the specified ambi-

ent temperature. If the failure persists, please return the unit to

your local service center for repair.
