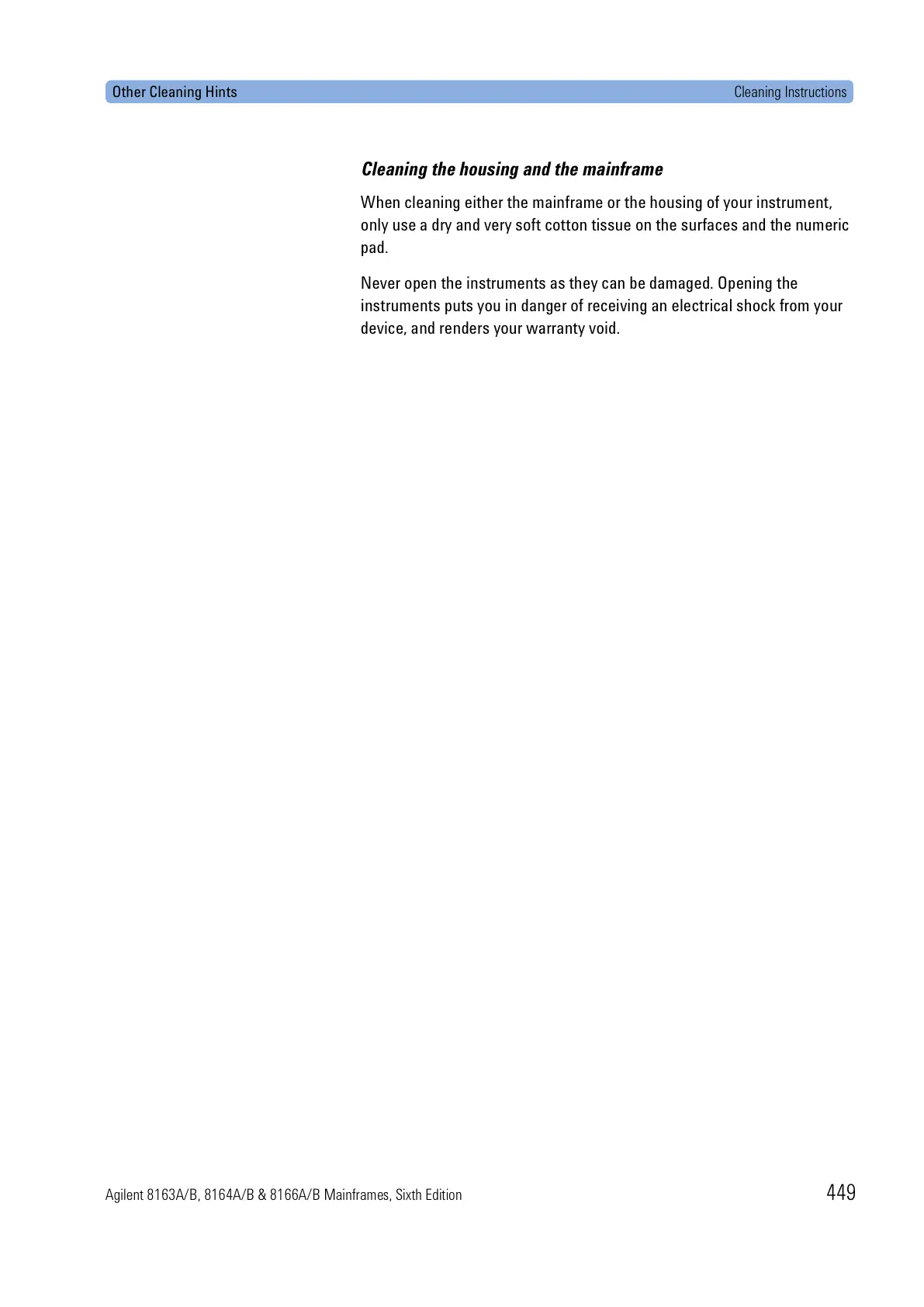

Other Cleaning Hints Cleaning Instructions

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 449

Cleaning the housing and the mainframe

When cleaning either the mainframe or the housing of your instrument,

only use a dry and very soft cotton tissue on the surfaces and the numeric

pad.

Never open the instruments as they can be damaged. Opening the

instruments puts you in danger of receiving an electrical shock from your

device, and renders your warranty void.
