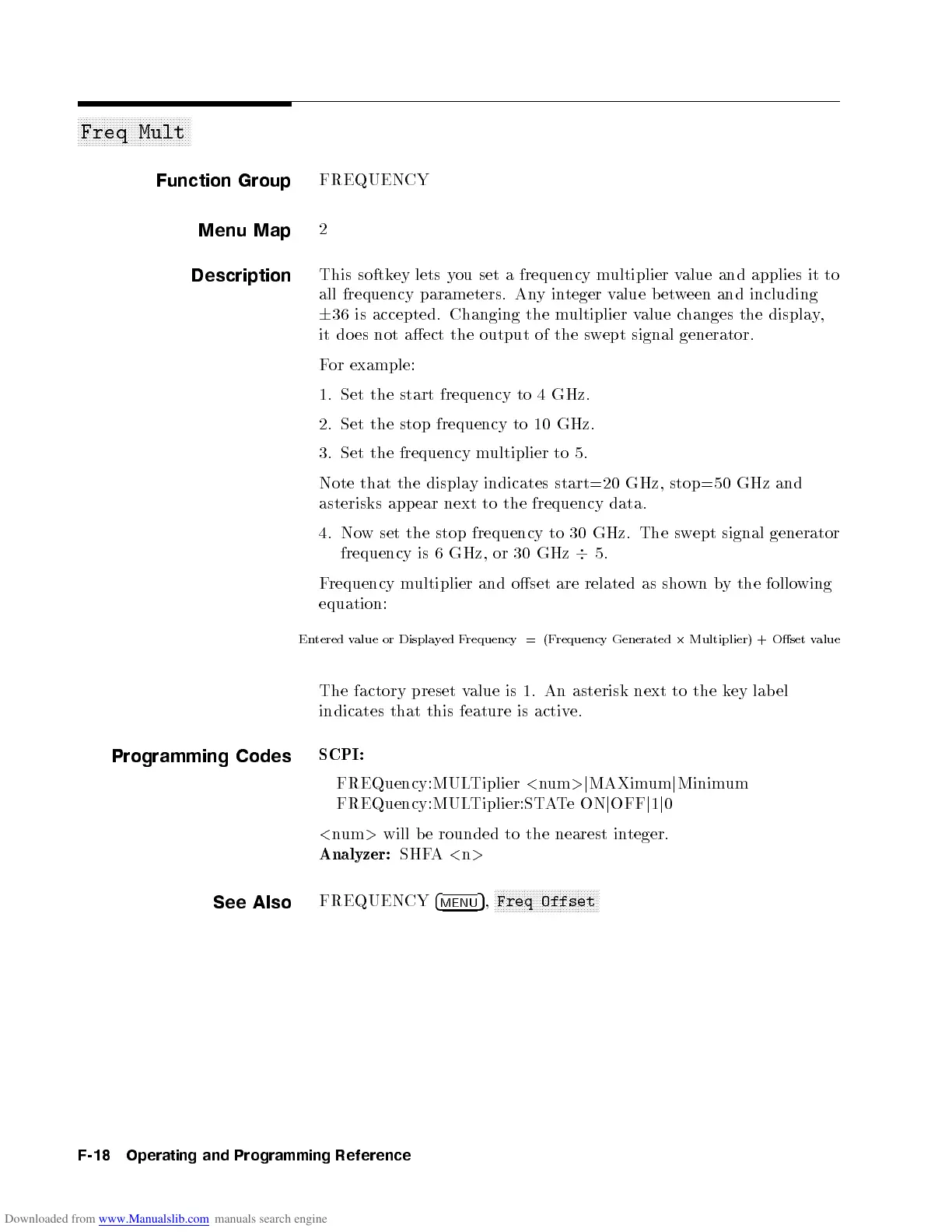

Freq Mult
Function Group
FREQUENCY
Menu Map
2
Description
This softkey lets you set a frequency multiplier value and applies it to
all frequency parameters. Anyinteger value between and including
6 36 is accepted. Changing the multiplier value changes the display,
it does not aect the output of the swept signal generator.
For example:
1. Set the start frequency to 4 GHz.
2. Set the stop frequency to 10 GHz.
3. Set the frequency multiplier to 5.
Note that the display indicates start=20 GHz, stop=50 GHz and
asterisks app ear next to the frequency data.
4. Now set the stop frequency to 30 GHz. The sw
ept signal generator
frequency is 6 GHz, or 30 GHz 4 5.
Frequency multiplier and oset are related as shown by the following
equation:
Entered value or Displayed Frequency = (Frequency Generated 2 Multiplier) + Oset value
The factory preset value is 1. An asterisk next to the k
ey lab el
indicates that this feature is active.
Programming Codes
SCPI:
FREQuency:MULTiplier < num > j MAXimum j Minimum
FREQuency:MULTiplier:STATeON j OFF j 1 j 0
< num > will b e rounded to the nearest integer.
Analyzer: SHFA < n >
See Also
FREQUENCY 4
MENU
5 ,
