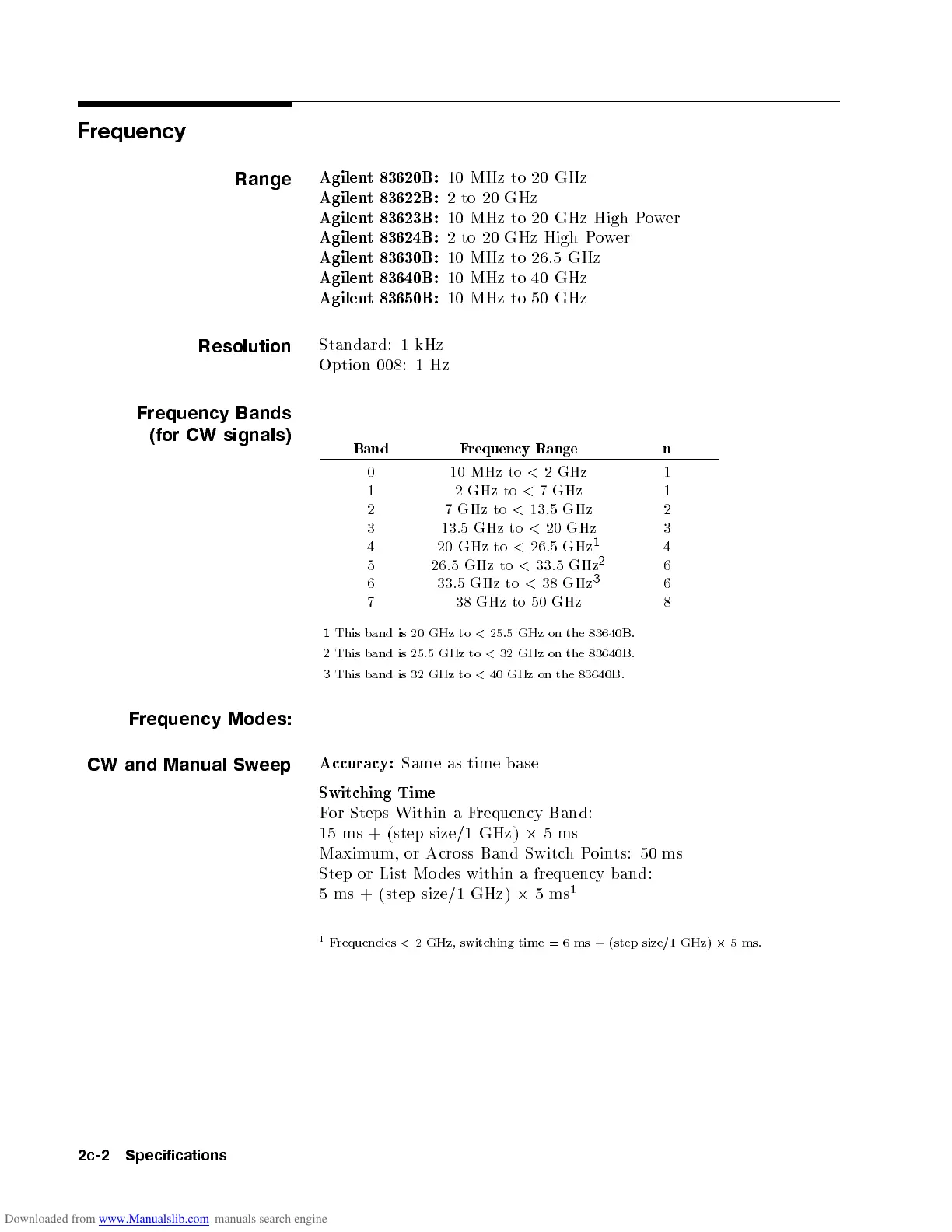

Frequency
Range
Agilent 83620B:
10 MHz to 20 GHz
Agilent 83622B:
2 to 20 GHz
Agilent 83623B:
10 MHz to 20 GHz High Power
Agilent 83624B:
2 to 20 GHz High Power
Agilent 83630B:
10 MHz to 26.5 GHz
Agilent 83640B:
10 MHz to 40 GHz
Agilent 83650B:
10 MHz to 50 GHz
Resolution
Standard: 1 kHz
Option 008: 1 Hz
Frequency Bands
(for CW signals)
Band Frequency Range n
0 10 MHz to
<
2 GHz 1
1 2 GHz to
<
7 GHz 1
2 7 GHz to
<
13.5 GHz 2
3 13.5 GHz to
<
20 GHz 3
4 20 GHz to
<
26.5 GHz
1
4
5 26.5 GHz to
<
33.5 GHz
2
6
6 33.5 GHz to
<
38 GHz
3
6
7 38 GHz to 50 GHz 8
1
This band is 20 GHz to
<
25.5 GHz on the 83640B.
2
This band is 25.5 GHz to
<
32 GHz on the 83640B.
3
This band is 32 GHz to
<
40 GHz on the 83640B.
Frequency Modes:
CW and Manual Sweep
Accuracy:
Same as time base
Switching Time
For Steps Within a Frequency Band:
15 ms + (step size/1 GHz)
2
5ms
Maximum, or Across Band SwitchPoints: 50 ms
Step or List Mo des within a frequency band:
5 ms + (step size/1 GHz)
2
5ms
1
1
Frequencies
<
2 GHz, switching time = 6 ms + (step size/1 GHz)
2
5 ms.
2c-2 Specifications
