Display Area

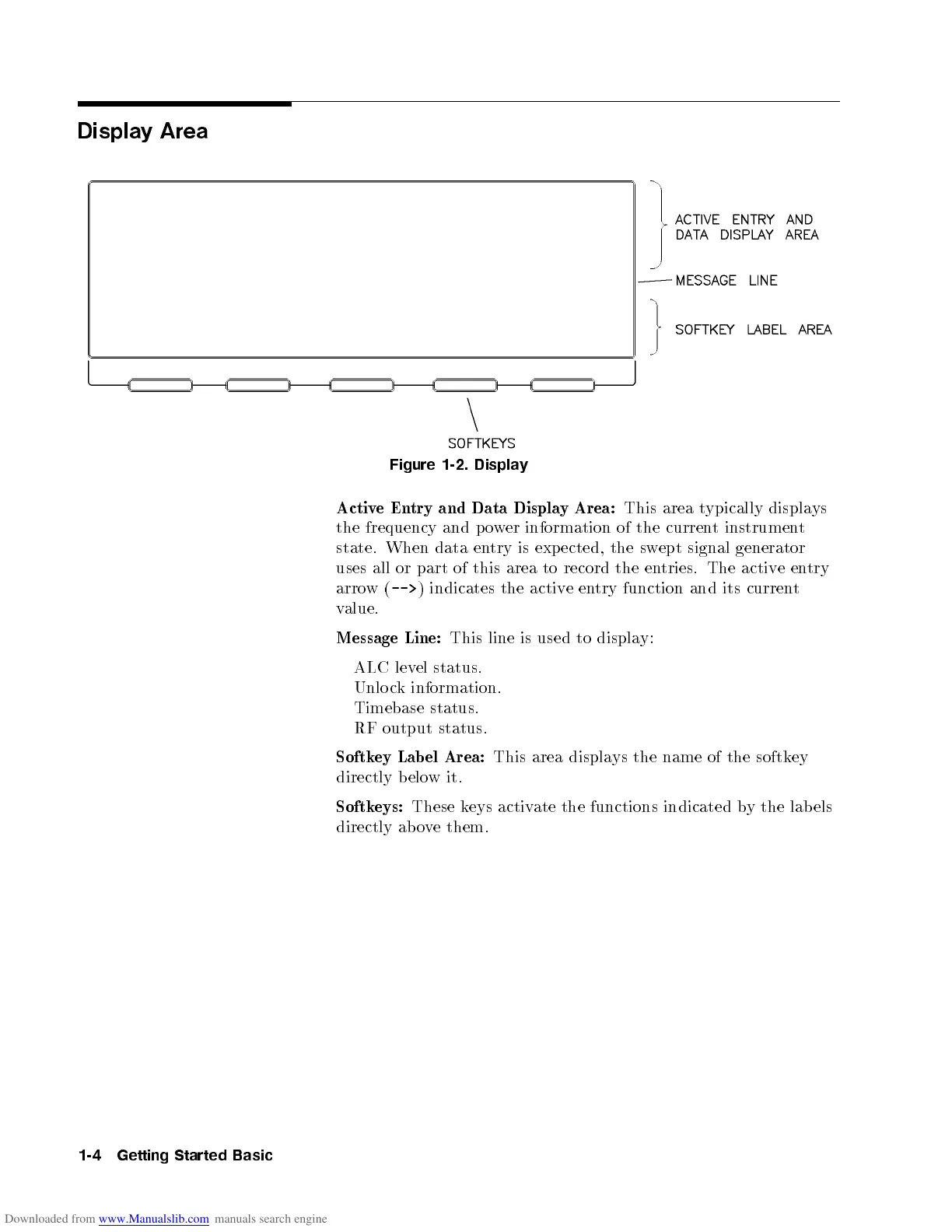

Figure 1-2. Display
ActiveEntry and Data Display Area:
This area typically displays
the frequency and power information of the current instrument
state. When data entry is expected, the swept signal generator
uses all or part of this area to record the en
tries. The active entry
arrow (
-->
) indicates the active entry function and its current
value.
Message Line:
This line is used to display:
ALC level status.
Unlo ck information.
Timebase status.
RF output status.
Softkey Label Area:
This area displays the name of the softkey
directly below it.
Softkeys:
These keys activate the functions indicated by the lab els
directly above them.
1-4 Getting Started Basic
