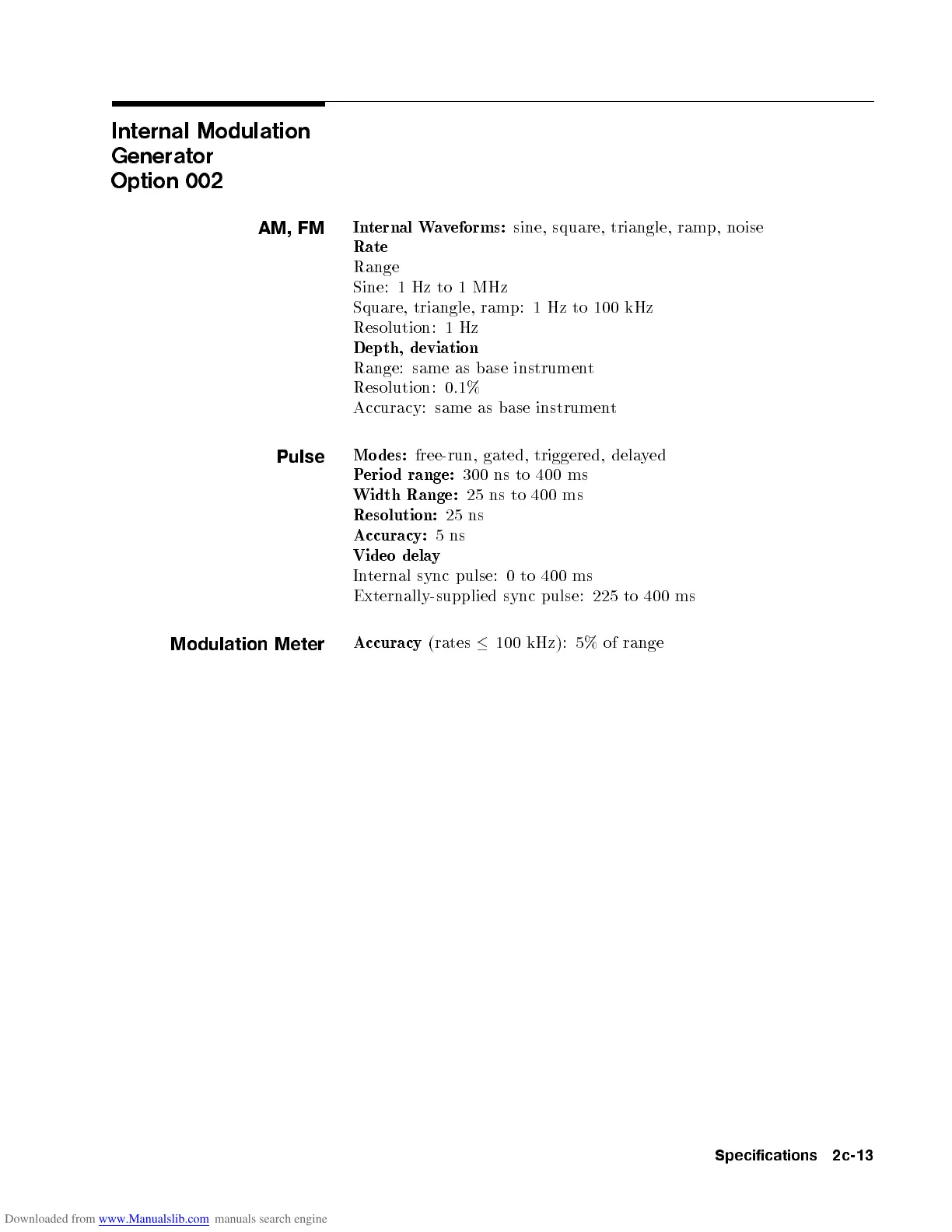

Internal Modulation
Generator
Option 002
AM, FM
Internal Waveforms: sine, square, triangle, ramp, noise
Rate
Range
Sine: 1 Hz to 1 MHz
Square, triangle, ramp: 1 Hz to 100 kHz
Resolution: 1 Hz
Depth, deviation
Range: same as base instrument
Resolution: 0.1%
Accuracy: same as base instrument
Pulse
Mo des: free-run, gated, triggered, delayed
Perio d range: 300 ns to 400 ms
Width Range: 25 ns to 400 ms
Resolution: 25 ns
Accuracy: 5ns
Video delay
Internal sync pulse: 0 to 400 ms
Externally-supplied sync pulse: 225 to 400 ms
Modulation Meter
Accuracy (rates  100 kHz): 5% of range
Specifications 2c-13
