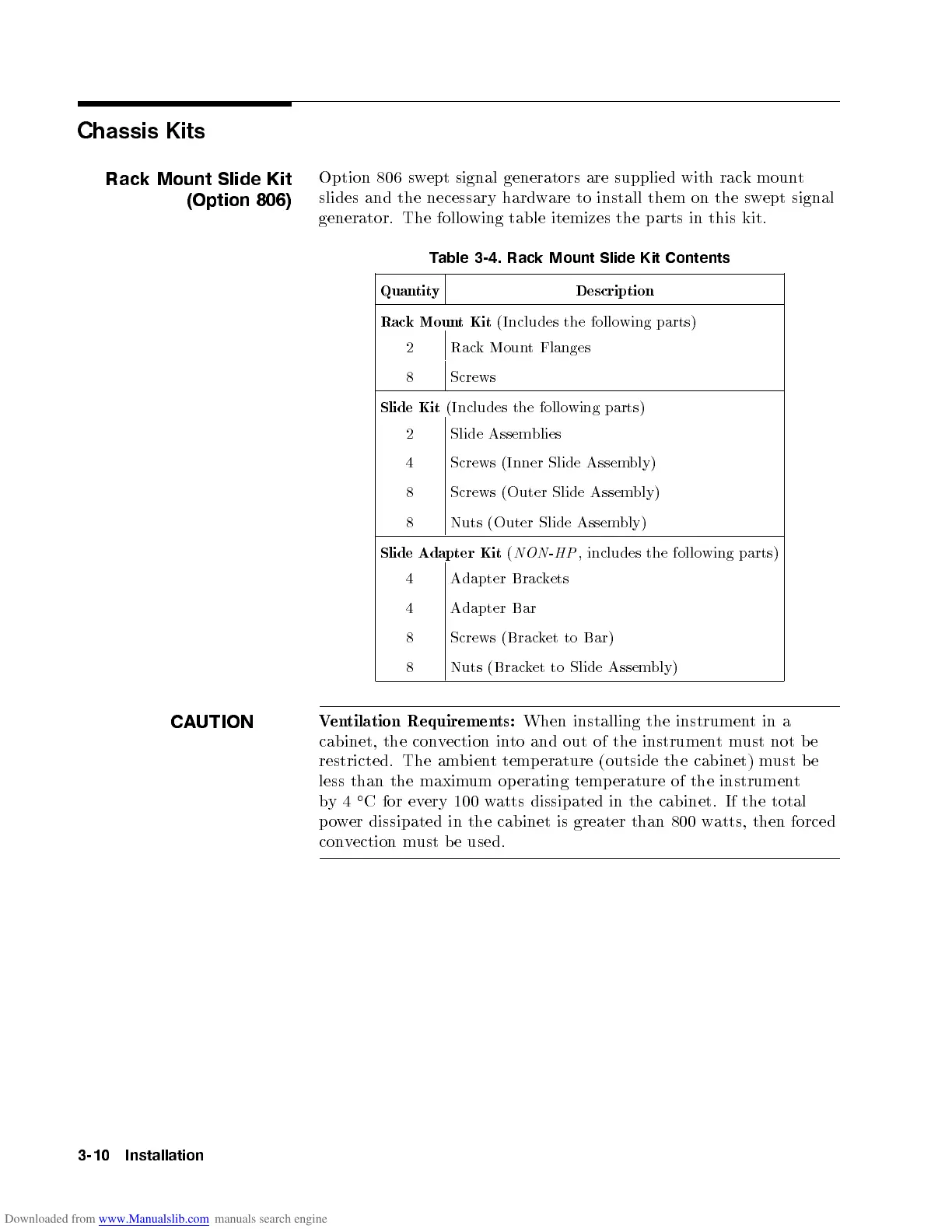

Chassis Kits
Rack Mount Slide Kit
(Option 806)
Option 806 swept signal generators are supplied with rack mount
slides and the necessary hardware to install them on the swept signal
generator. The following table itemizes the parts in this kit.
Table 3-4. Rack Mount Slide Kit Contents
Quantity Description
Rack Mount Kit
(Includes the following parts)
2 Rack Mount Flanges
8 Screws
Slide Kit
(Includes the following parts)
2 Slide Assemblies
4 Screws (Inner Slide Assembly)
8 Screws (Outer Slide Assembly)
8 Nuts (Outer Slide Assembly)
Slide Adapter Kit
(
NON-HP
, includes the following parts)
4 Adapter Brackets
4 Adapter Bar
8 Screws (Bracket to Bar)
8 Nuts (Bracket to Slide Assembly)
CAUTION
Ventilation Requirements:
When installing the instrumentina
cabinet, the convection into and out of the instrumentmust not b e
restricted. The ambient temp erature (outside the cabinet) must be
less than the maximum op erating temp erature of the instrument
by4

C for every 100 watts dissipated in the cabinet. If the total
power dissipated in the cabinet is greater than 800 watts, then forced
convection must b e used.
3-10 Installation
