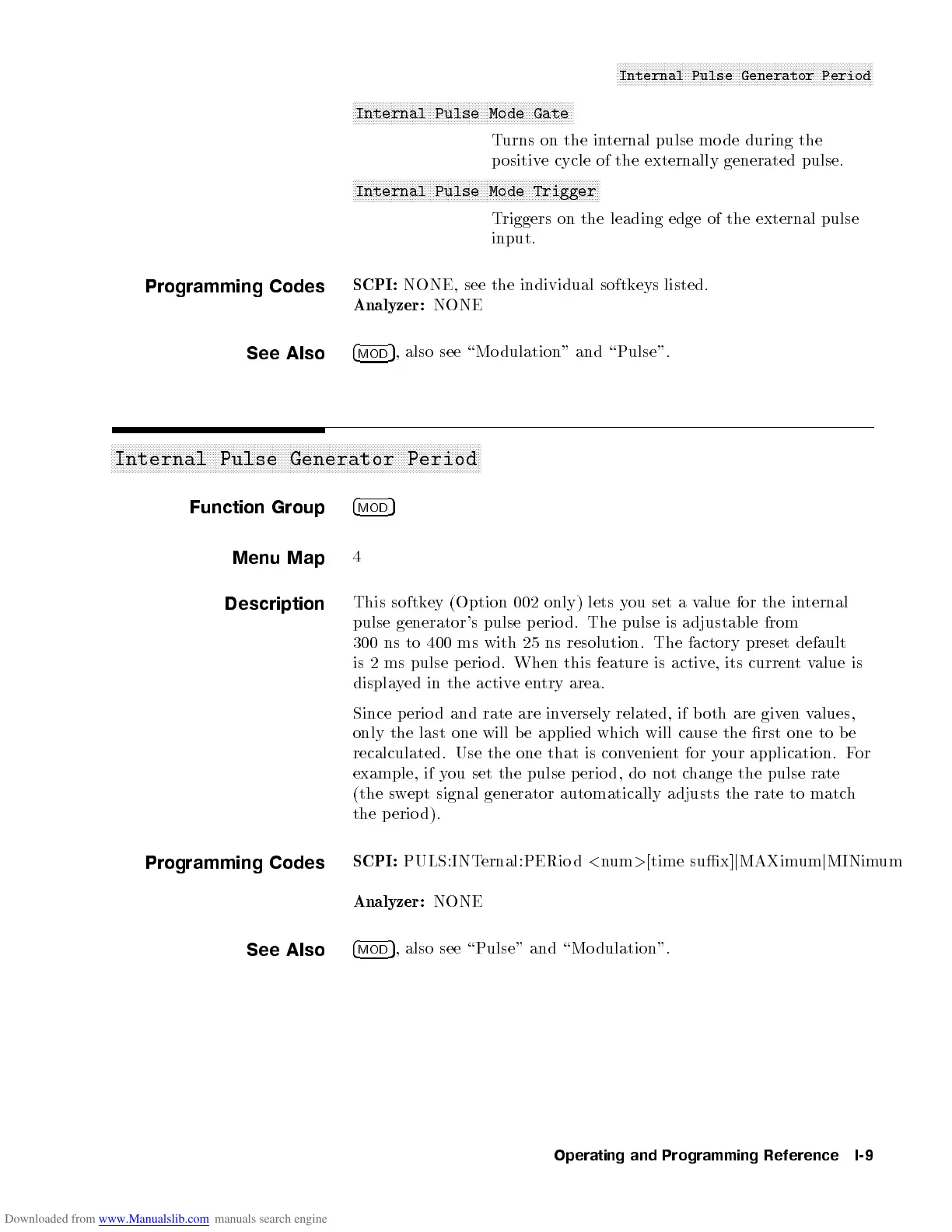

Internal Pulse Generator Period
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Mode Gate
Turns on the internal pulse mo de during the
positiv e cycle of the externally generated pulse.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Mode Trigger
Triggers on the leading edge of the external pulse
input.
Programming Codes
SCPI: NONE, see the individual softkeys listed.
Analyzer: NONE
See Also
4
MOD
5 , also see \Mo dulation" and \Pulse".
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Internal Pulse Generator Period
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) lets you set a value for the internal
pulse generator's pulse perio d. The pulse is adjustable from
300 ns to 400 ms with 25 ns resolution. The factory preset default
is 2 ms pulse p erio d. When this feature is active, its curren
tvalue is
displayed in the active entry area.
Since p erio d and rate are inversely related, if b oth are given values,
only the last one will b e applied which will cause the rst one to be
recalculated. Use the one that is convenient for your application. For
example, if you set the pulse p erio d, do not change the pulse rate
(the swept signal generator automatically adjusts the rate to match
the perio d).
Programming Codes
SCPI: PULS:INTernal:PERio d < num > [time sux] j MAXimum j MINimum
Analyzer: NONE
See Also
4
MOD
5 , also see \Pulse" and \Mo dulation".
Operating and Programming Reference I-9
