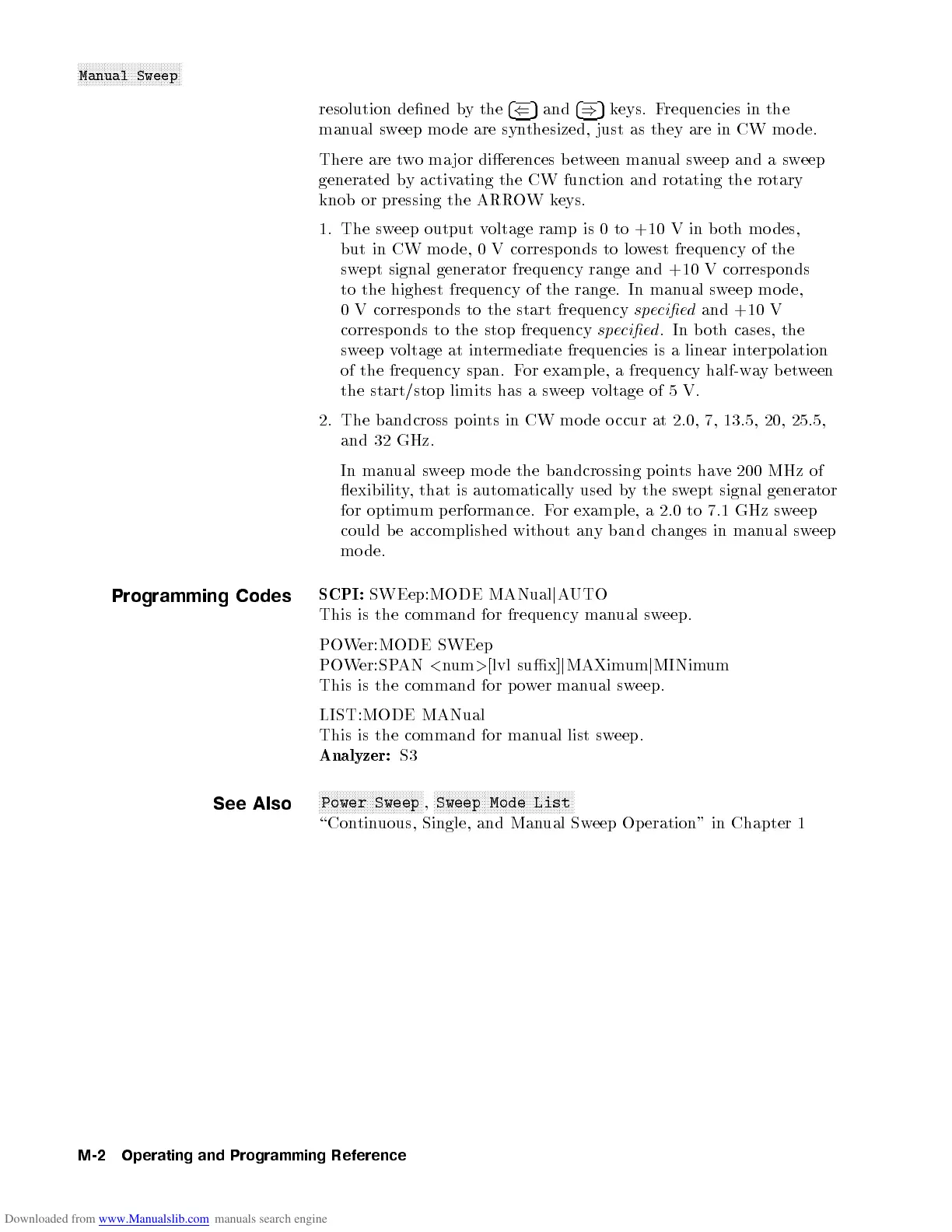

Manual Sweep
resolution dened by the 4
(
5 and 4
)
5 keys. Frequencies in the
manual sweep mo de are synthesized, just as they are in CW mo de.
There are two ma jor dierences between manual sweep and a sweep
generated by activating the CW function and rotating the rotary
knob or pressing the ARROWkeys.
1. The sweep output voltage ramp is 0 to +10 V in both mo des,
but in CW mo de, 0 V corresp onds to lowest frequency of the
swept signal generator frequency range and +10 V corresponds
to the highest frequency of the range. In manual sweep mo de,
0 V corresp onds to the start frequency specied and +10 V
corresp onds to the stop frequency specied . In b oth cases, the
sweep voltage at intermediate frequencies is a linear interpolation
of the frequency span. For example, a frequency half-waybetween
the start/stop limits has a sweep voltage of 5 V.
2. The bandcross points in CW mo de o ccur at 2.0, 7, 13.5, 20, 25.5,
and 32 GHz.
In manual sweep mo de the bandcrossing points have 200 MHz of
exibility, that is automatically used by the swept signal generator
for optimum p erformance. For example, a 2.0 to 7.1 GHz sweep
could be accomplished without any band changes in manual sweep
mo de.
Programming Codes
SCPI: SWEep:MODE MANual j AUTO
This is the command for frequency manual sweep.
POWer:MODE SWEep
POWer:SPAN < num > [lvl sux] j MAXimum j MINimum
This is the command for power manual sweep.
LIST:MODE MANual
This is the command for manual list sweep.
Analyzer: S3
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Power Sweep ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode List
\Continuous, Single, and Manual Sweep Operation" in Chapter 1
M-2 Operating and Programming Reference
