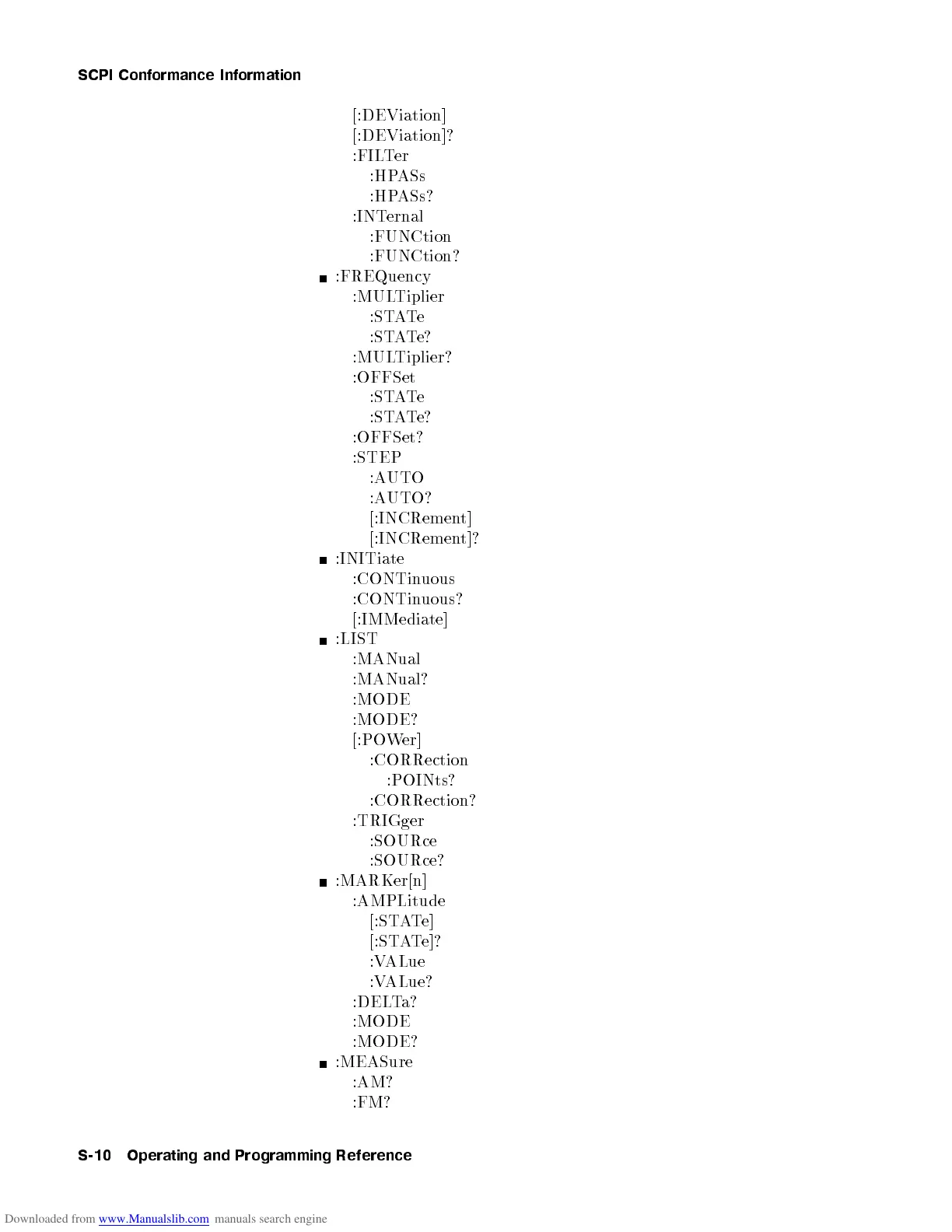

SCPI Conformance Information

[:DEViation]

[:DEViation]?

:FILTer

:HPASs

:HPASs?

:INTernal

:FUNCtion

:FUNCtion?

:FREQuency

:MULTiplier

:STATe

:STATe?

:MULTiplier?

:OFFSet

:STATe

:STATe?

:OFFSet?

:STEP

:AUTO

:AUTO?

[:INCRement]

[:INCRement]?

:INITiate

:CONTinuous

:CONTinuous?

[:IMMediate]

:LIST

:MANual

:MANual?

:MODE

:MODE?

[:POWer]

:CORRection

:POINts?

:CORRection?

:TRIGger

:SOURce

:SOURce?

:MARKer[n]

:AMPLitude

[:STATe]

[:STATe]?

:VALue

:VALue?

:DELTa?

:MODE

:MODE?

:MEASure

:AM?

:FM?

S-10 Operating and Programming Reference
