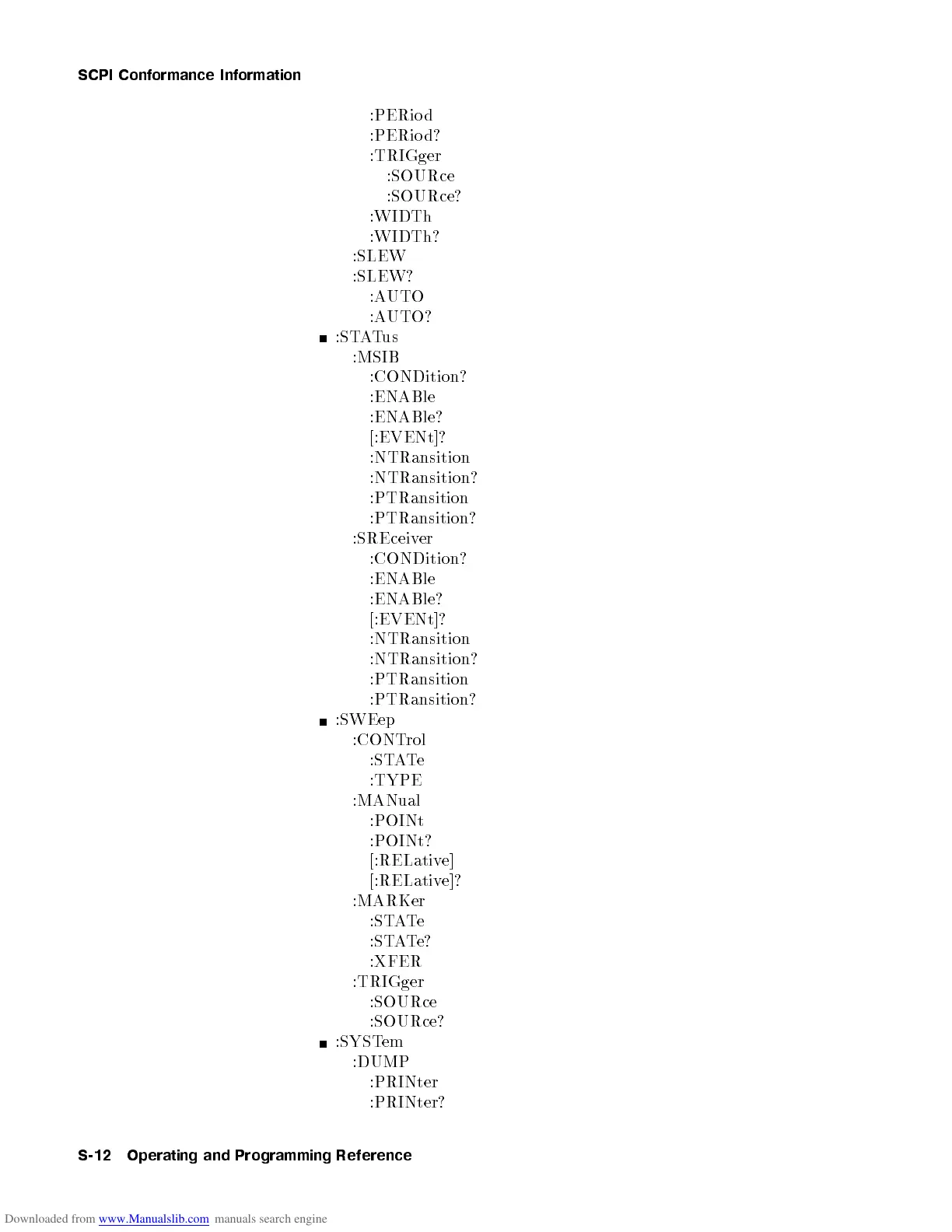

SCPI Conformance Information

:PERio d

:PERio d?

:TRIGger

:SOURce

:SOURce?

:WIDTh

:WIDTh?

:SLEW

:SLEW?

:AUTO

:AUTO?

:STATus

:MSIB

:CONDition?

:ENABle

:ENABle?

[:EVENt]?

:NTRansition

:NTRansition?

:PTRansition

:PTRansition?

:SREceiver

:CONDition?

:ENABle

:ENABle?

[:EVENt]?

:NTRansition

:NTRansition?

:PTRansition

:PTRansition?

:SWEep

:CONTrol

:STATe

:TYPE

:MANual

:POINt

:POINt?

[:RELative]

[:RELative]?

:MARKer

:STATe

:STATe?

:XFER

:TRIGger

:SOURce

:SOURce?

:SYSTem

:DUMP

:PRINter

:PRINter?

S-12 Operating and Programming Reference
