Agilent Technologies 8360 B Series

To Next Page

To Previous Page

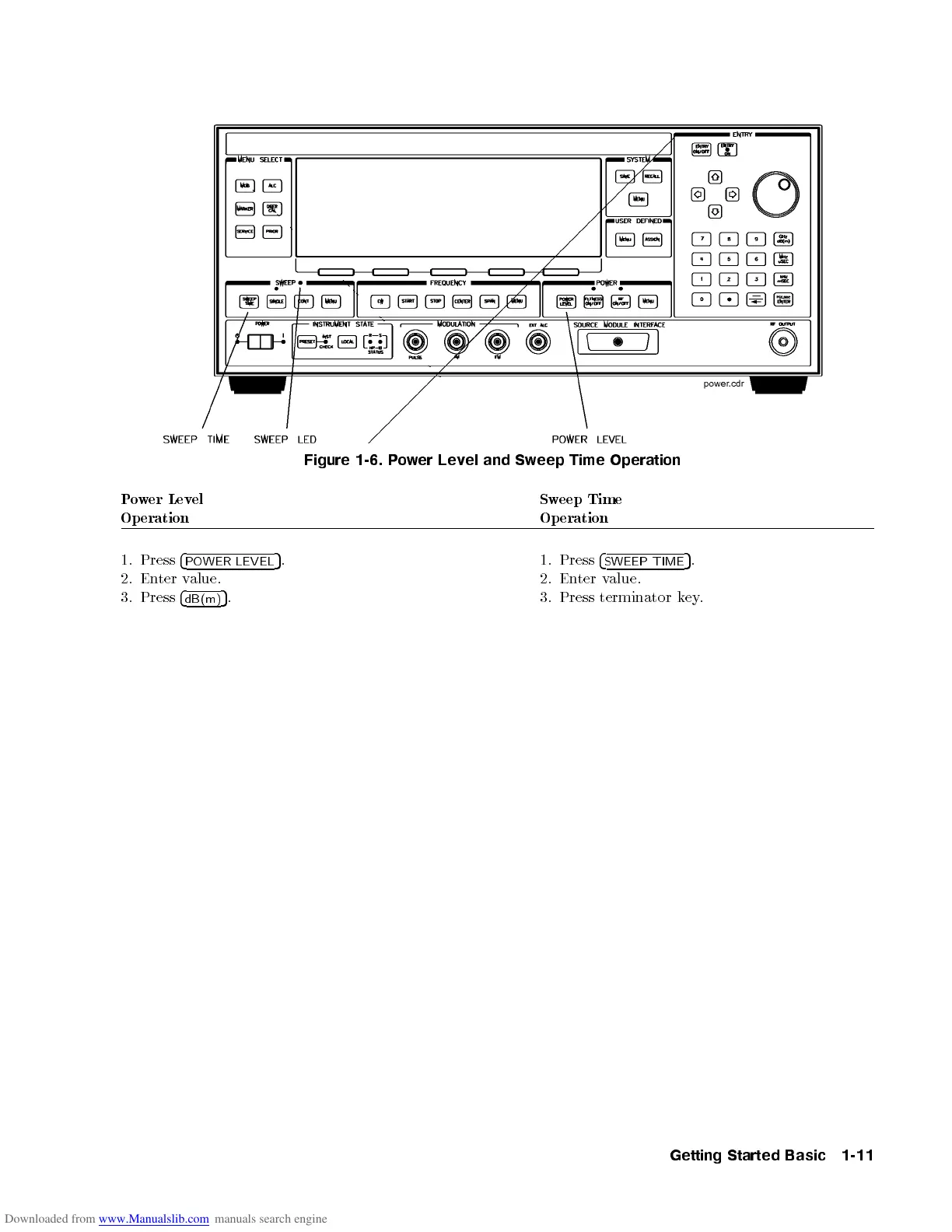

Figure 1-6. Power Level and Sweep Time Operation

Power Level

Operation

Sweep Time

Operation

1. Press

POWER LEVEL

. 1. Press

SWEEP TIME

2. Enter value. 2. Enter value.

3. Press

dB(m)

. 3. Press terminator key.

Getting Started Basic 1-11
