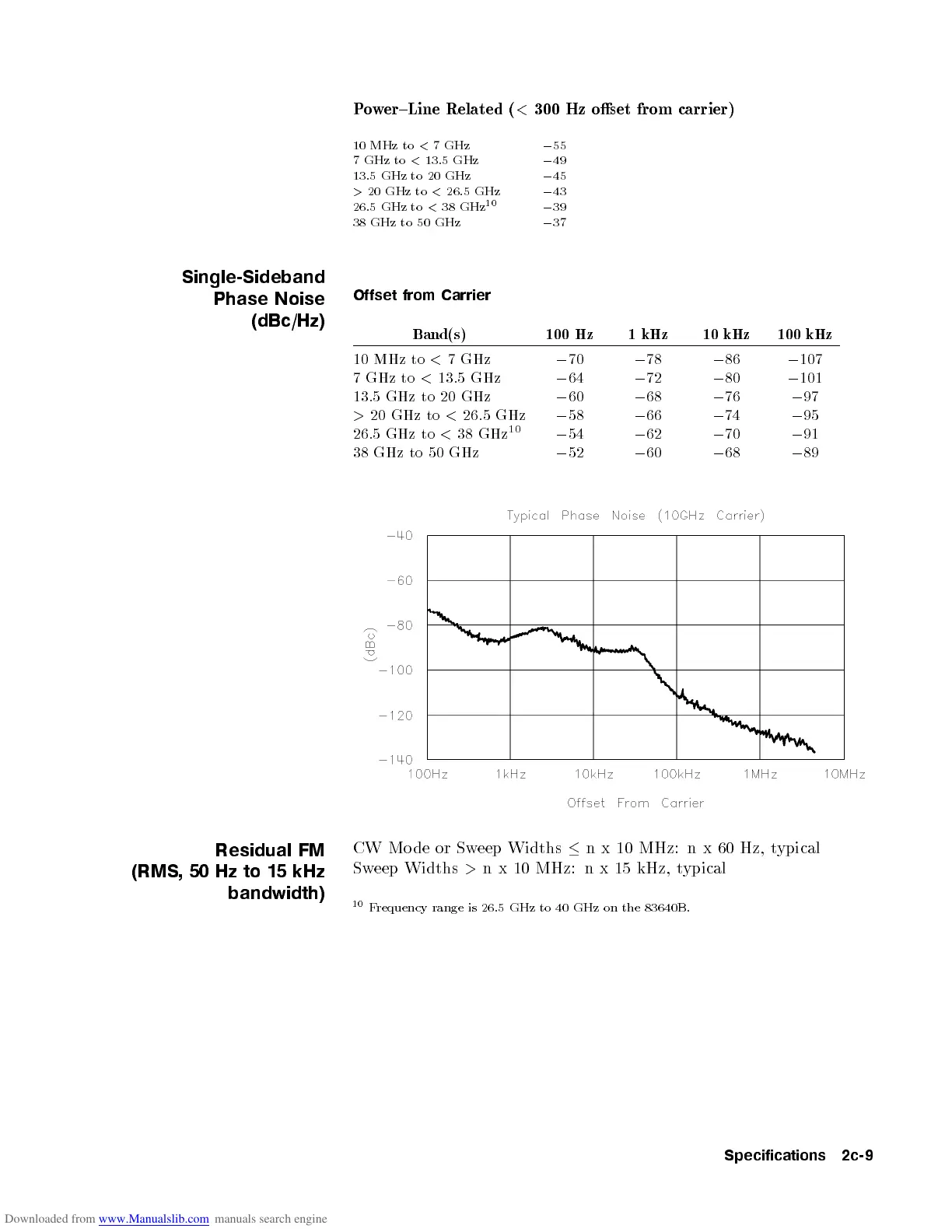

Power{Line Related ( < 300 Hz oset from carrier)
10 MHz to < 7 GHz 0 55
7 GHz to < 13.5 GHz 0 49
13.5 GHz to 20 GHz 0 45
> 20 GHz to < 26.5 GHz 0 43
26.5 GHz to < 38 GHz
10
0 39
38 GHz to 50 GHz 0 37
Single-Sideband
Phase Noise
(dBc/Hz)
Offset from Carrier
Band(s) 100 Hz 1 kHz 10 kHz 100 kHz
10 MHz to < 7 GHz 0 70 0 78 0 86 0 107
7 GHz to < 13.5 GHz 0 64 0 72 0 80 0 101
13.5 GHz to 20 GHz 0 60 0 68 0 76 0 97
> 20 GHz to < 26.5 GHz 0 58 0 66 0 74 0 95
26.5 GHz to < 38 GHz
10
0 54 0 62 0 70 0 91
38 GHz to 50 GHz 0 52 0 60 0 68 0 89
Residual FM
(RMS, 50 Hz to 15 kHz
bandwidth)
CW Mo de or Sweep Widths  n x 10 MHz: n x 60 Hz, t
ypical
Sweep Widths > n x 10 MHz: n x 15 kHz, t
ypical
10
Frequency range is 26.5 GHz to 40 GHz on the 83640B.
Specifications 2c-9
