6. Refer to Figure 3-4. Remove the inner slide assemblies from the
outer slide assemblies.
7. To secure the side covers in place, mount the inner slide assemblies
to the instrument with the screws provided.
8. With the appropriate hardware, install the outer slide assemblies
to the system enclosure.
9. Lift the swept signal generator into p osition. Align the inner and
outer slide assemblies and slide the instrumentinto the rack.
Realign the hardware as needed for smo oth op eration.

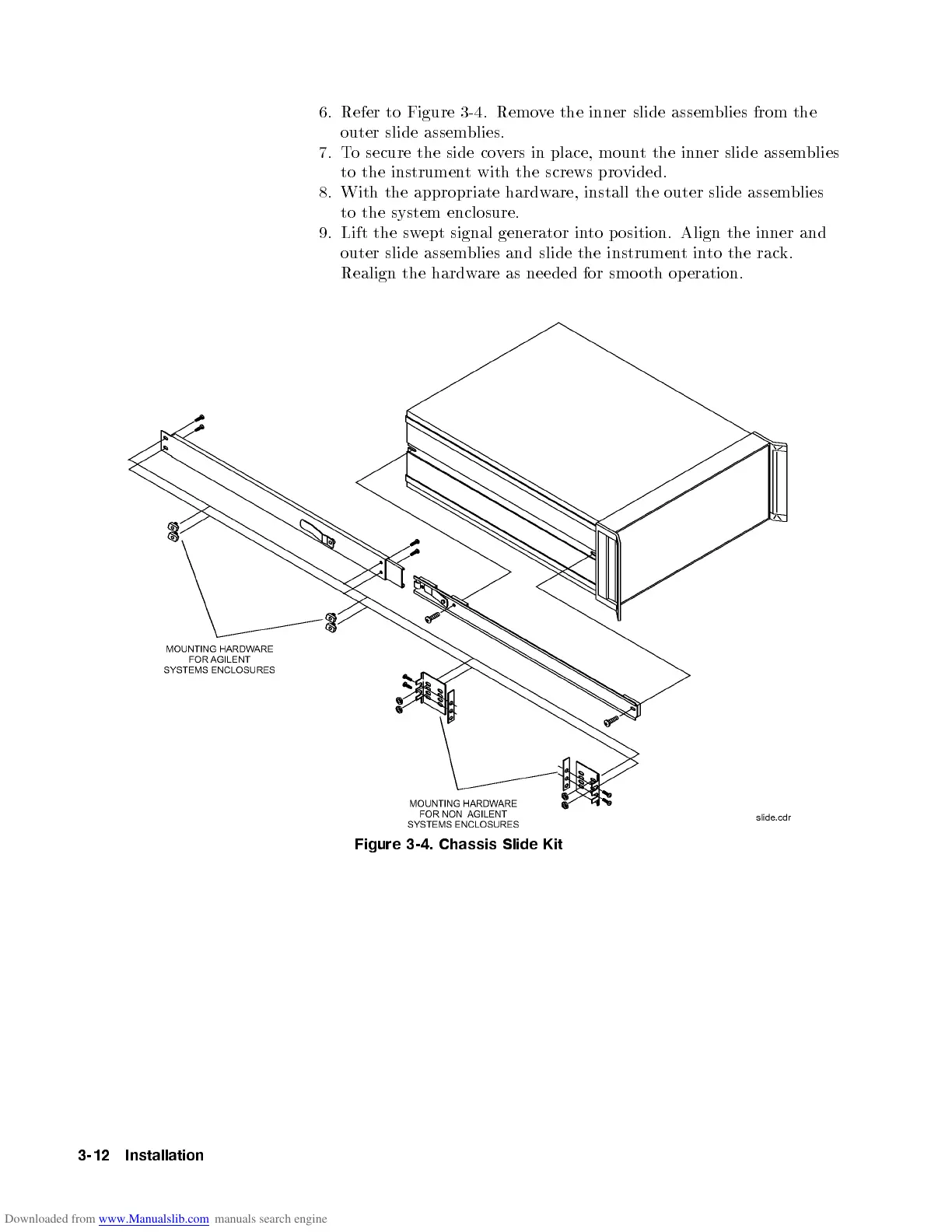

Figure 3-4. Chassis Slide Kit
3-12 Installation
