Installation Procedure
1. Refer to Figure 3-6. Remove handle trim strips.
2. Remove the four screws on each side that attach the handles to
the instrument.
3. Using the longer screws provided, attach the rack mount anges to
the outside of the handles.
4. Remove the b ottom and back feet and the tilt stands b efore rack
mounting the instrument.

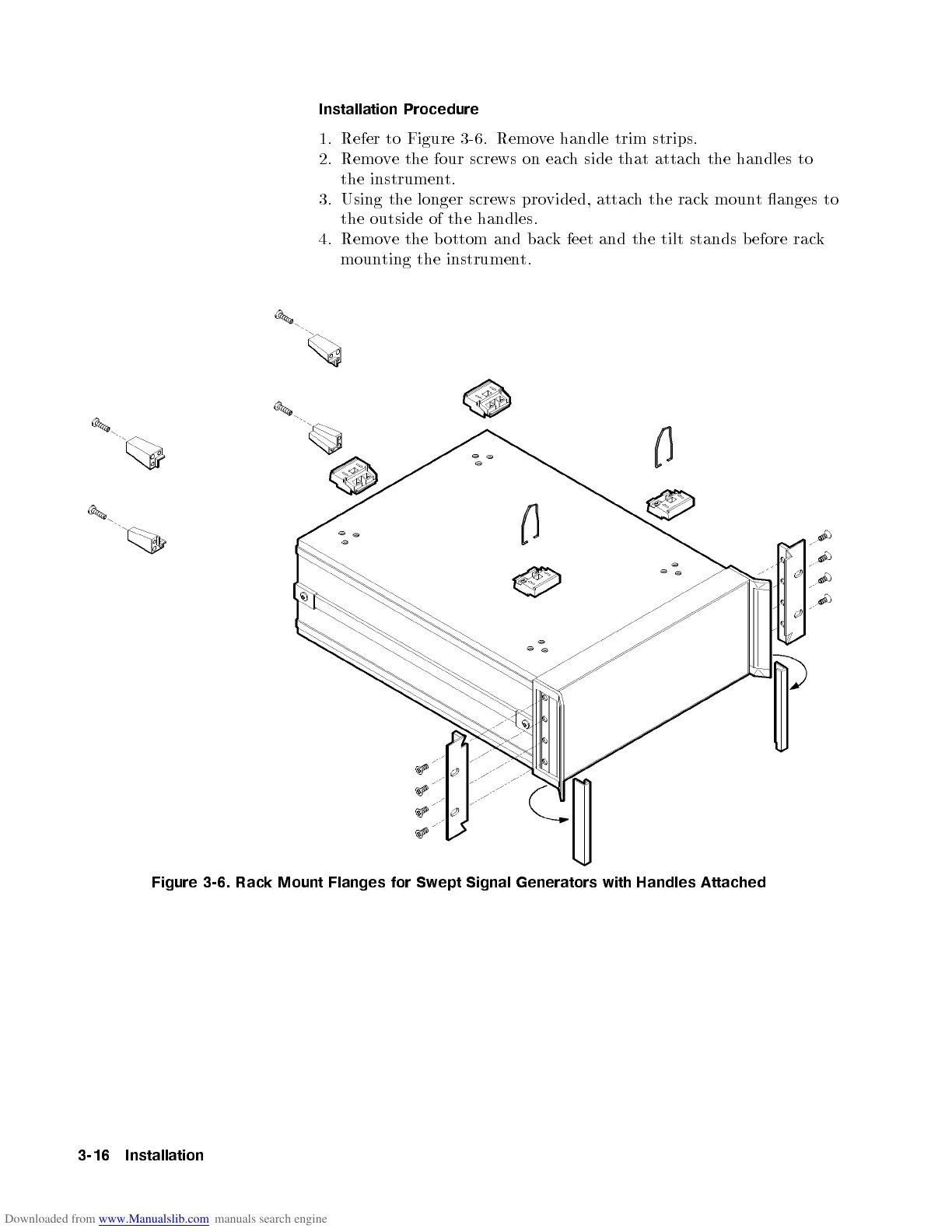

Figure 3-6. Rack Mount Flanges for Swept Signal Generators with Handles Attached
3-16 Installation
