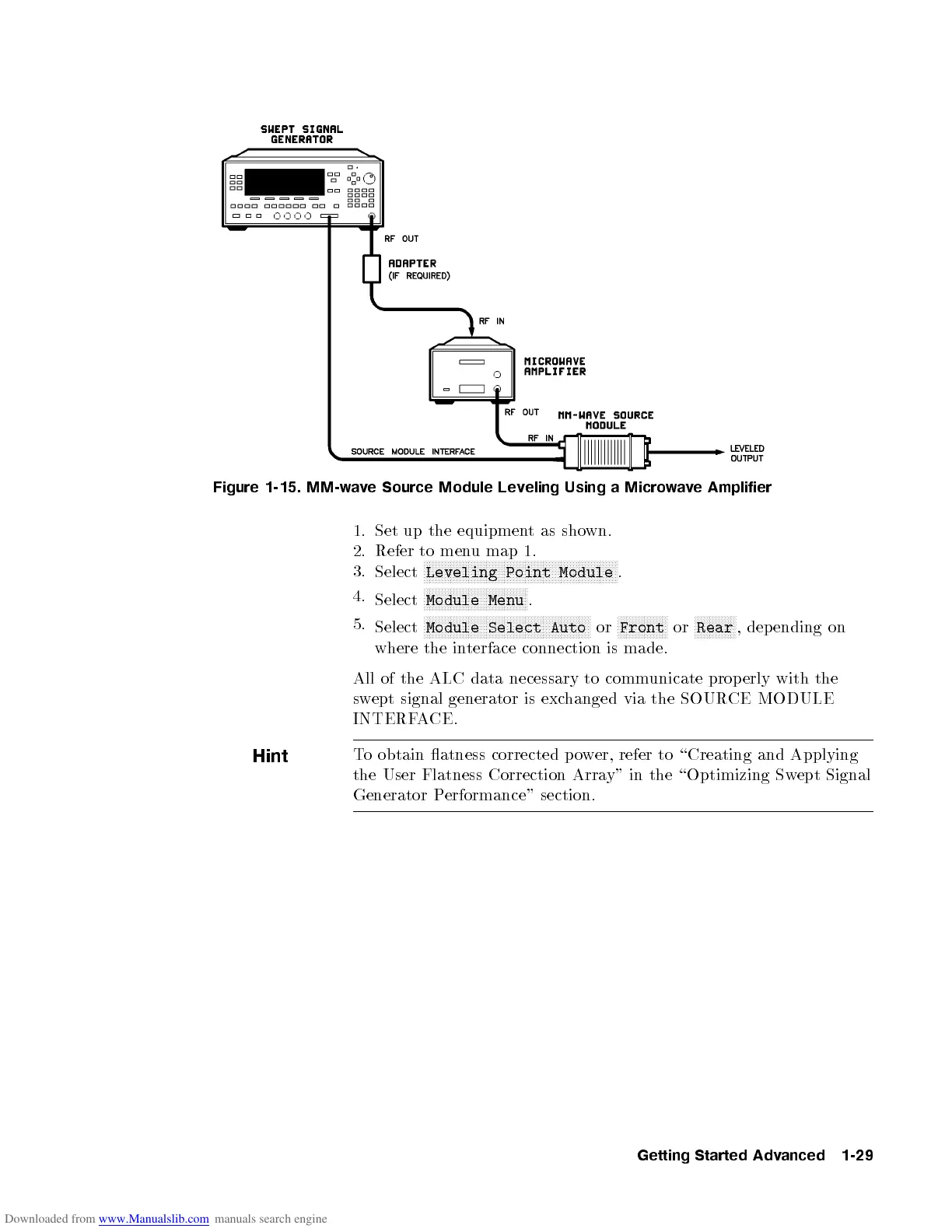

Figure 1-15. MM-wave Source Module Leveling Using a Microwave Amplifier
1. Set up the equipment as shown.
2. Refer to menu map 1.
3.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point Module .
4.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Menu .
5.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Select Auto or
NNNNNNNNNNNNNNNNN
Front or
NNNNNNNNNNNNNN
Rear , depending on
where the interface connection is made.
All of the ALC data necessary to communicate prop erly with the
swept signal generator is exchanged via the SOURCE MODULE
INTERFACE.
Hint
To obtain atness corrected p ower, refer to \Creating and Applying
the User Flatness Correction Array" in the \Optimizing Swept Signal
Generator Performance" section.
