5-8 Programmer’s Guide
Using Status Registers
The Service Request Process
Generating a Service Request
A service request is generated using the Status Byte. As shown in Figure
5-3, the analyzer's other register sets report to the Status Byte. Some of
them report directly while others report indirectly through other register
sets.

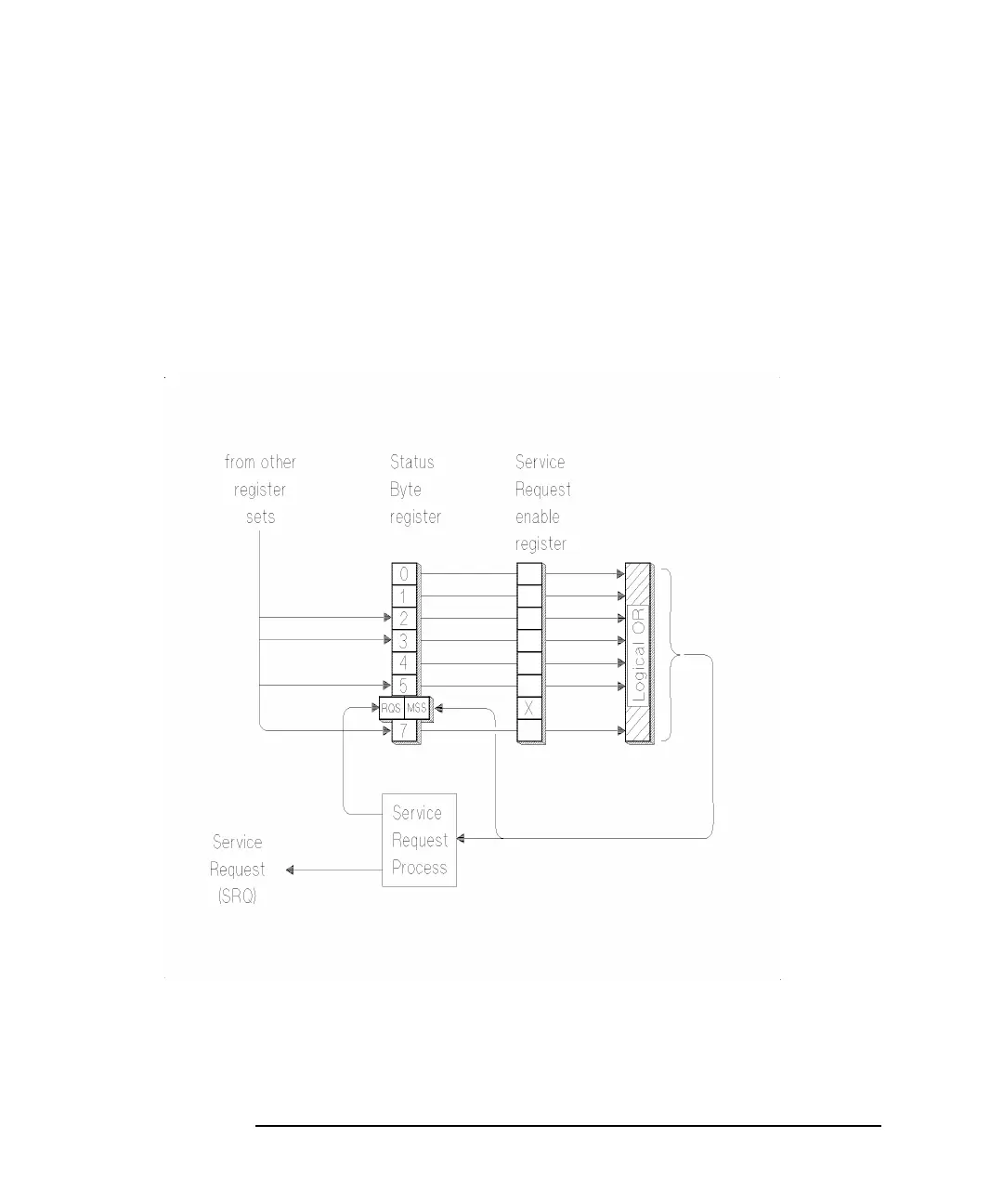

Figure 5-3 Generating a Service Request
