5-20 Programmer’s Guide
Using Status Registers
The Analyzer's Status Register Sets
Standard Event Status Register Set
The Standard Event Status register set monitors GPIB errors and
synchronization conditions. See Figure 5-7.

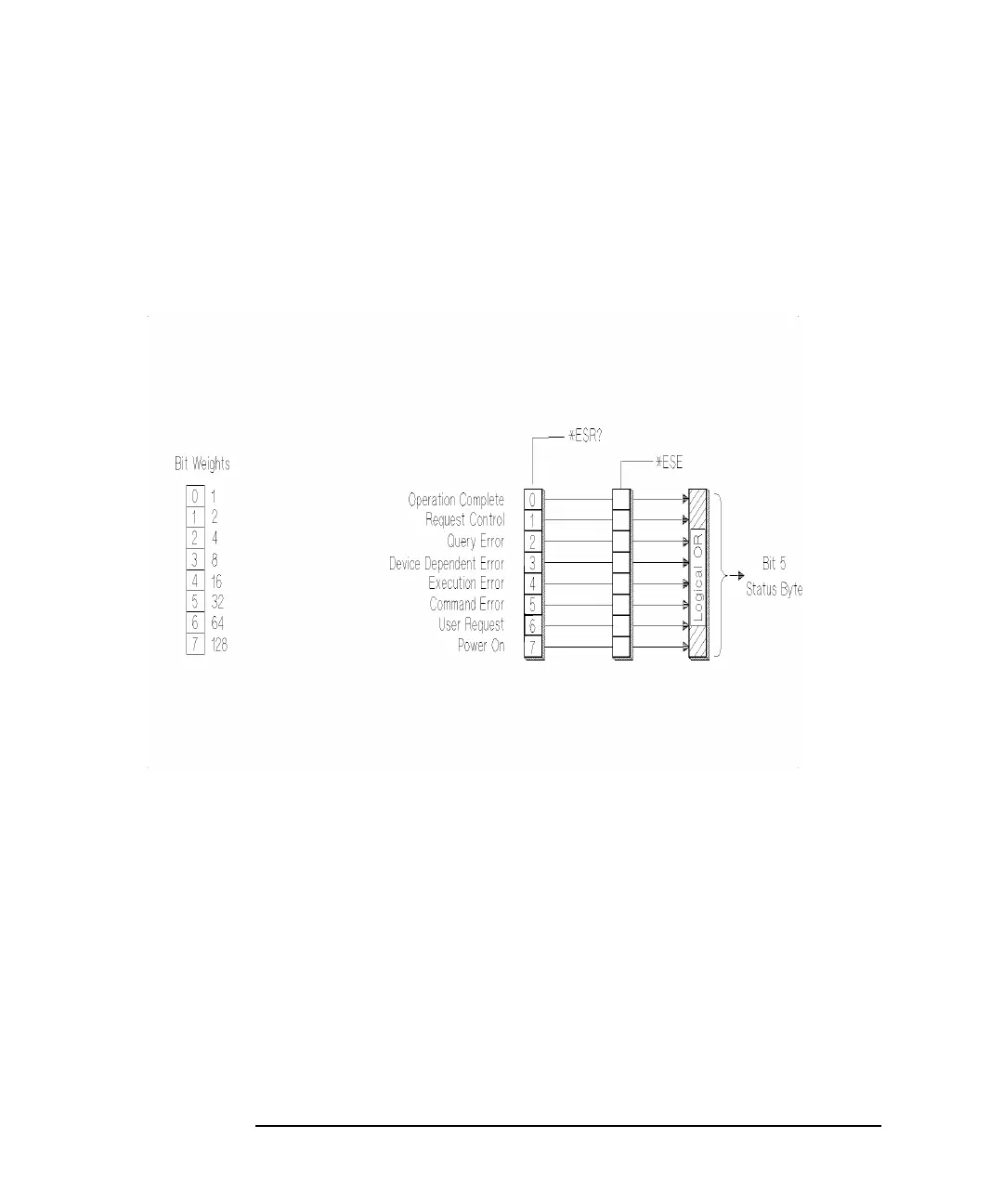

Figure 5-7 The Standard Event Status Register Set
The Standard Event Status register set does not conform to the general
status register model described at the beginning of this section. It
contains only two registers: the Standard Event Status event register
and the Standard Event Status enable register. The Standard Event
Status event register is similar to other event registers, but behaves like
a register set that has a positive transition register with all bits set to 1.
The Standard Event Status enable register is the same as other enable
registers.
