2-80 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Test Port Output Worst-Case 3rd Harmonic
11.To change the stop frequency:
If you do not have Option 006, press .
If you have Option 006, press .
12.Press .
13.After one sweep, press to normalize the
trace.
14.Press to get a better viewing of the trace.
15.Press .
16.After one sweep, press .
17.Press .
18.Write the marker 1 value on the performance test record.
Test Port 1 Input Worst-Case 2nd Harmonic
19.Connect the equipment as shown in Figure 2-45.

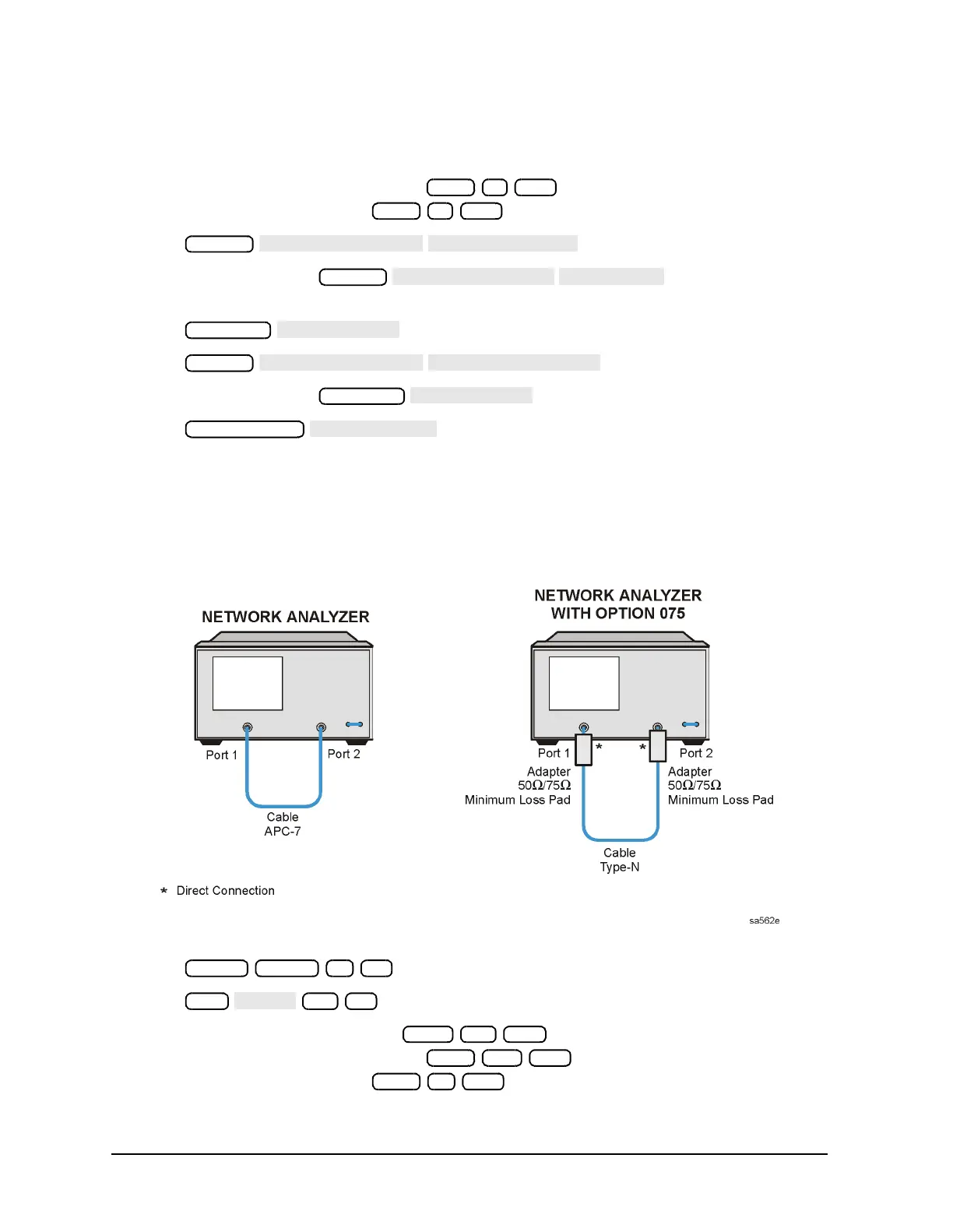

Figure 2-45 Receiver Harmonics Test Setup
20.Press .
21.Press .
22.To set the frequency range, press .
If you do not have Option 006, press .
If you have Option 006, press .
Stop 1 G/n
Stop 2 G/n
System
Display
→
Scale Ref
System
Preset Power 8 x1
Avg
10 x1
16 M/µ
Stop 1.5 G/n
Stop 3 G/n
To Next Page
