Dual Channel Operations
Combine
The Combine feature combines two outputs into one connector. If you choose CH2 from the Channel 1 menu, they
are combined on channel 1; choosing CH1 from the Channel 2 menu combines them on channel 2.

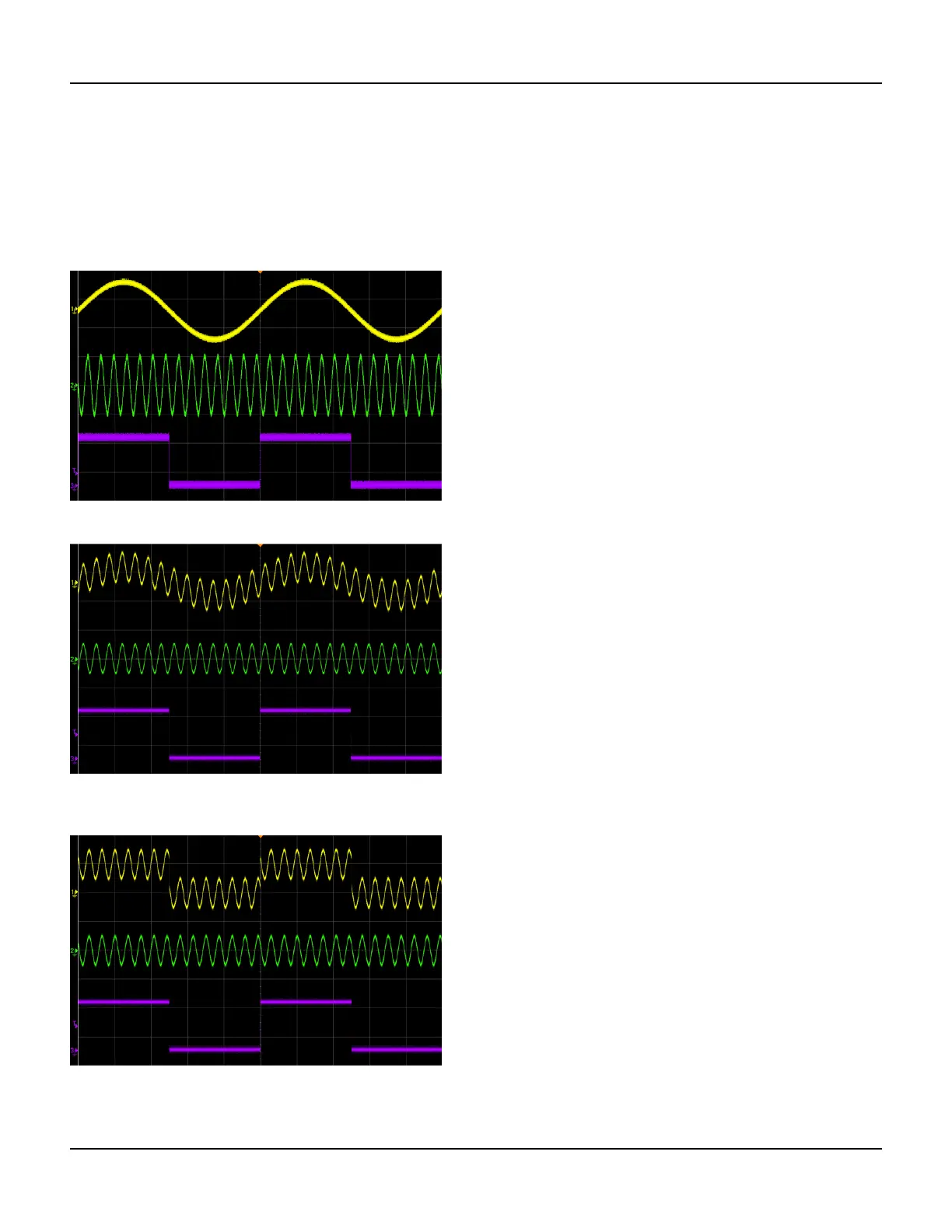

In the image below, the top waveform is a 100 mVpp, 1 kHz sine wave on channel 1, and the middle waveform is a 100
mVpp, 14 kHz sine wave on channel 2. The bottom trace is a Sync signal derived from channel 1.
This image shows the two outputs combined on channel 1.
The signals being combined do not have to be of the same type; for example, this image shows the same 14 kHz chan-
nel on channel 2 combined with a 100 mVpp square wave on channel 1.
108 Agilent 33500 Series Operating and Service Guide
