Embedded Waveform Editor

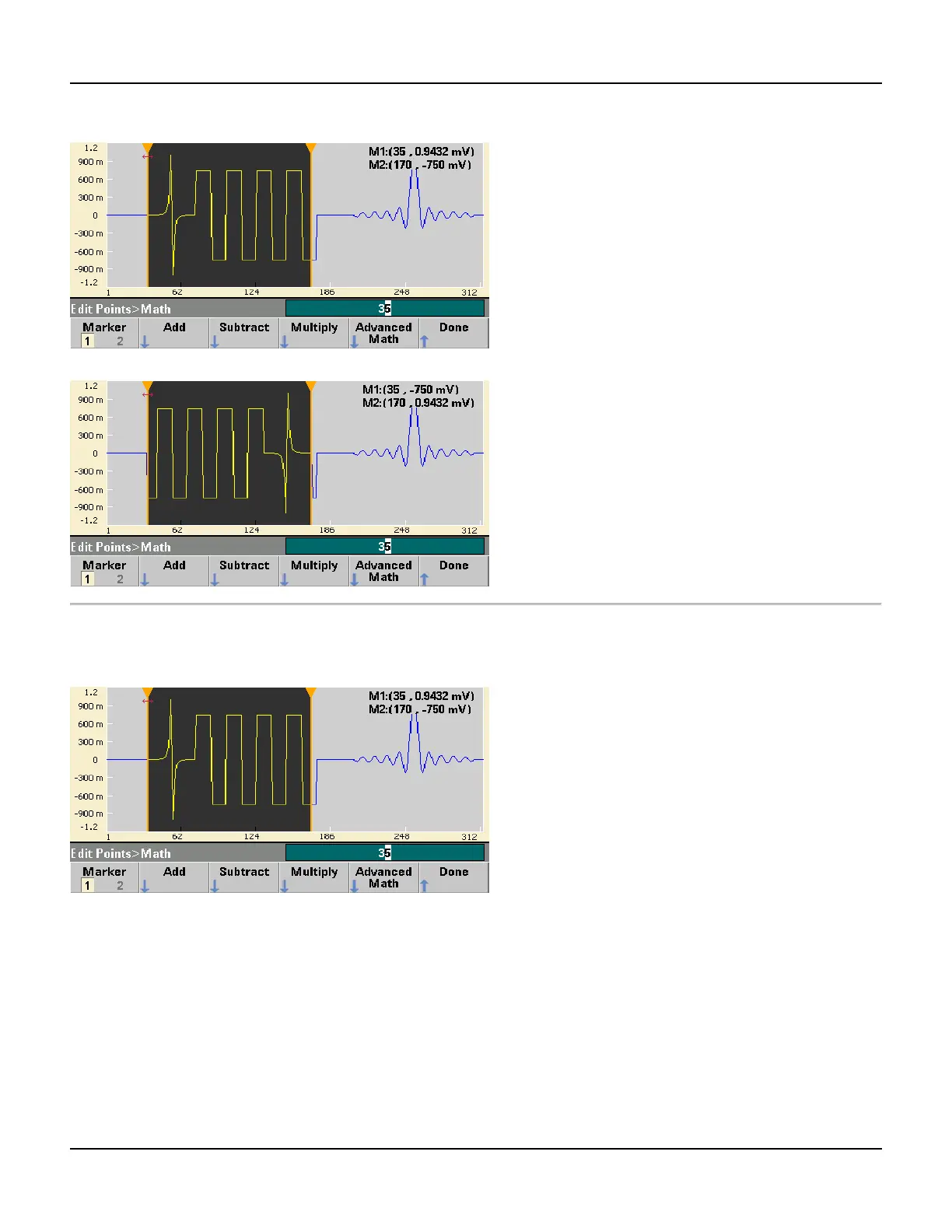

Image Before Mirror
Image After Mirror
Scale allows you to scale the waveform’s amplitude and offset. Here, the amplitude scale was set to 180% and the off-
set scale was set to 1 V.
Image Before Scale
