Agilent Technologies Agilent 33500 Series

Embedded Waveform Editor

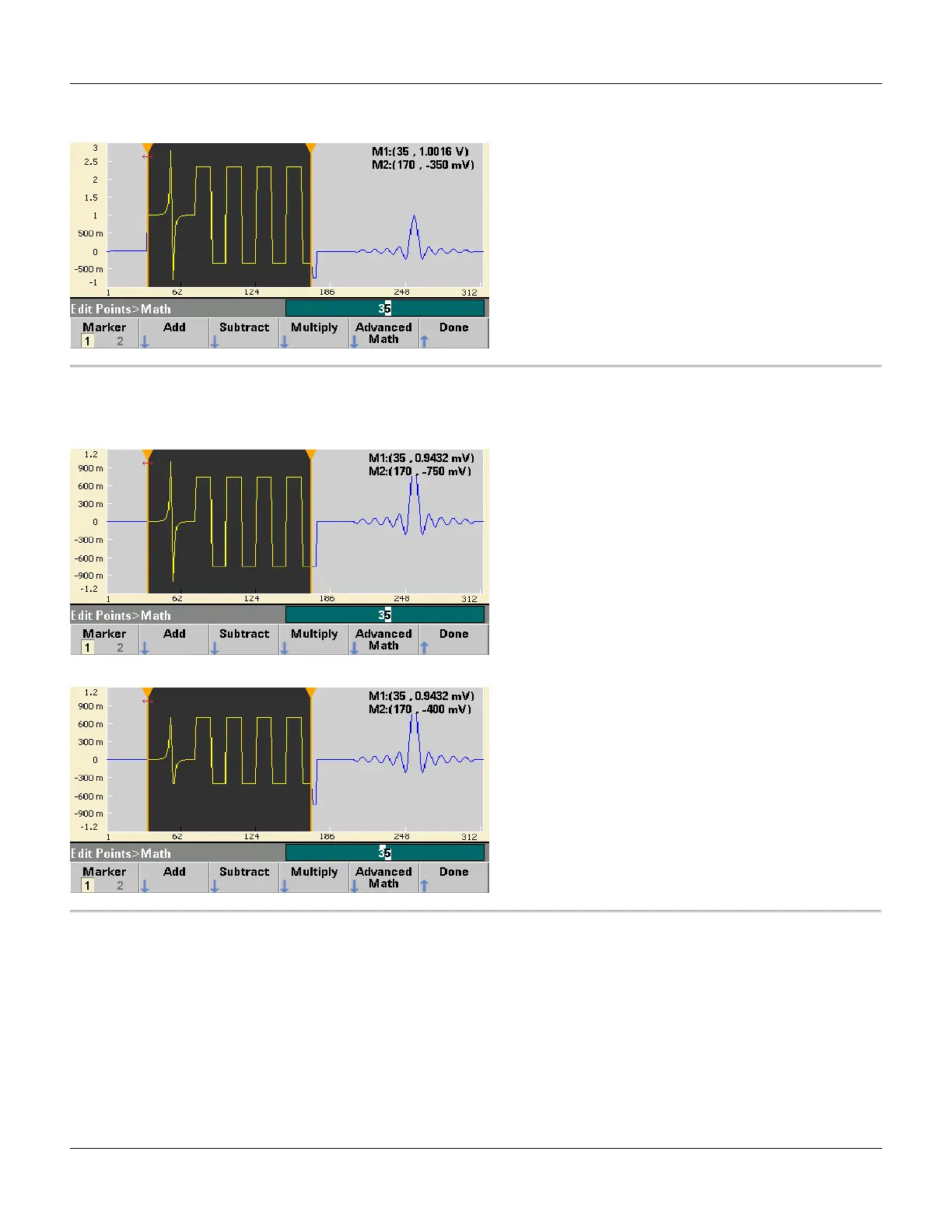

Image After Scale
Clip allows you to change voltage values outside upper and lower limits to be equal to the limits. In this example, the
waveform was clipped to stay within the -400 mV lower limit and the 700 mV upper limit.
Image Before Clip
Image After Clip
Trim allows you to use markers to "crop" the waveform so that only the points defined by the marker range remain in
the waveform.
Agilent 33500 Series Operating and Service Guide 137
