Front-Panel Menu Reference

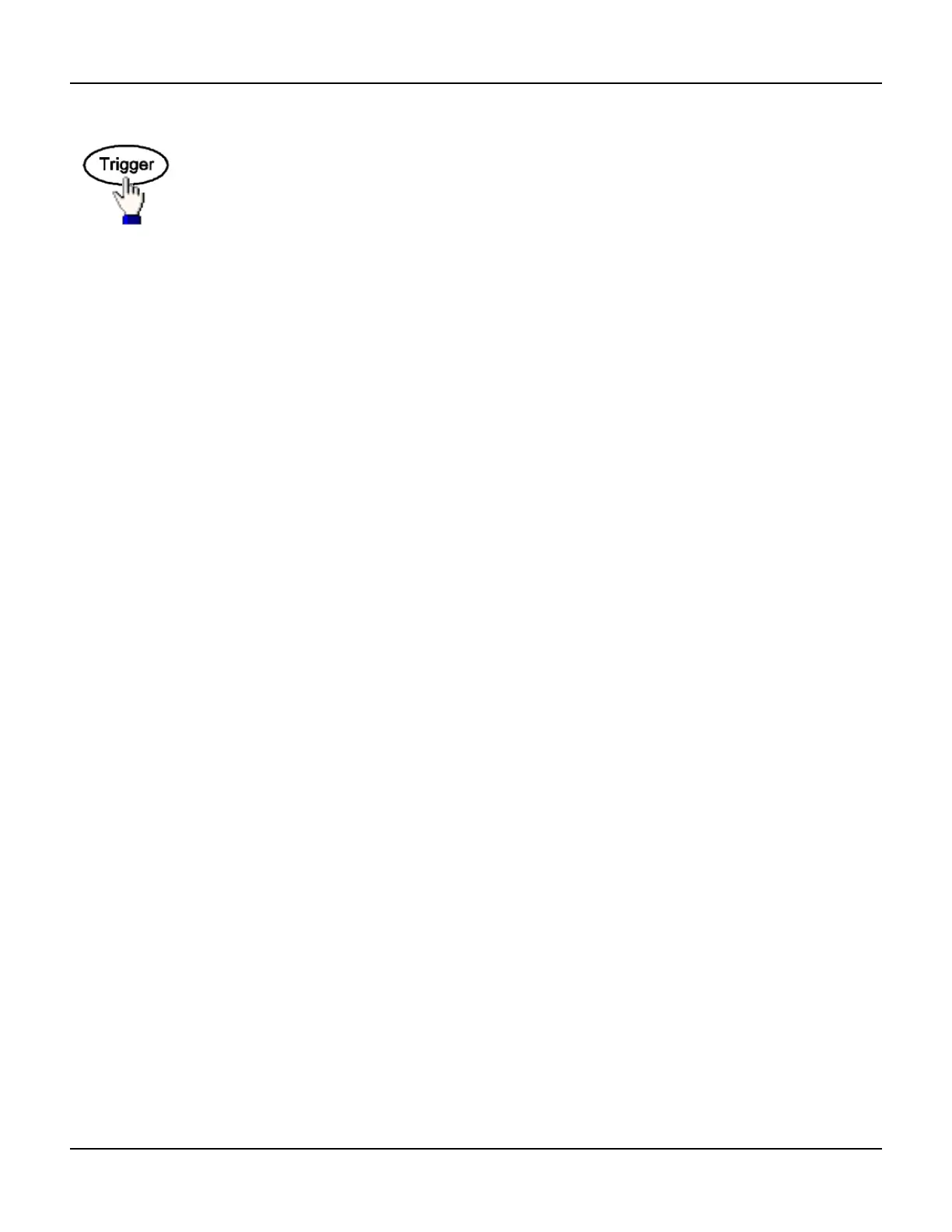

Configures trigger settings
l Perform a manual trigger, when illuminated.
l Specify the trigger source for sweep, burst or arbitrary waveform advance.
l Specify the trigger count and delay.
l Specify the slope (rising or falling edge) for an external trigger source.
l Specify the slope (rising or falling edge) of the trigger output signal.
l Enable / disable the signal output from the "Sync" connector.
42 Agilent 33500 Series Operating and Service Guide
