Set Up Arbitrary Waveform

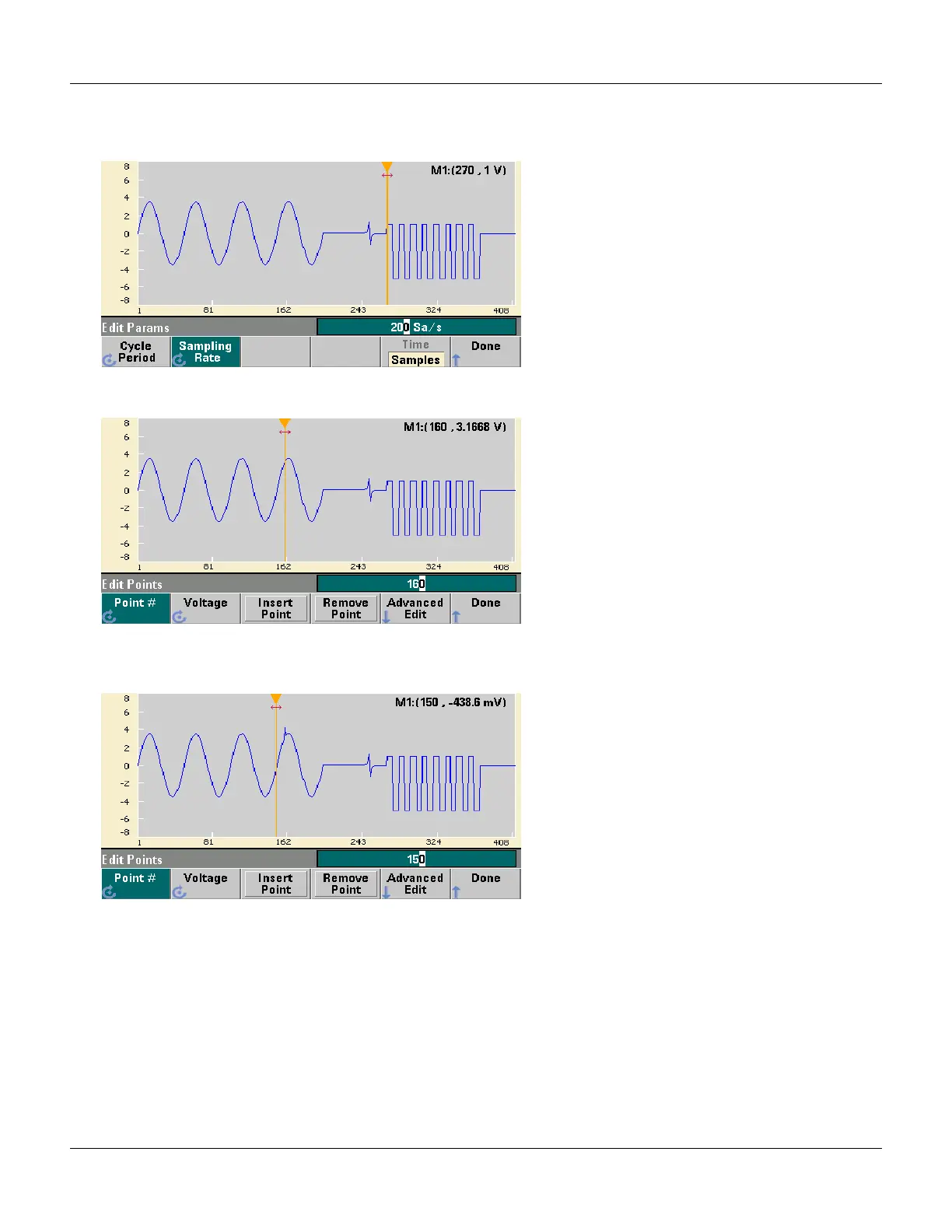

2. Change the Cycle Period to 2.04 seconds and then press the Sampling Rate softkey. It will now be set to 200
Sa/s in order to play the 408 point waveform in 2.04 seconds.
3. Press Done to exit the parameter editing screen. Press Edit Points and notice that the Point # softkey is high-
lighted. Enter the number 160 and press Enter to move the marker.
4. Press Voltage and change the voltage of the selected point to 4.2 V. Press Point # and change the point marker
to 150 to move the marker off the point. When you press Enter to finish entering point 150, you will see the 4.2 V
anomaly in the wave that you just created at point 160.
Zoom and Pan
1. To see the point in detail, press System, then Pan/Zoom Control. Notice that the first softkey is set to Hor-
izontal, meaning that the zooming that we are about to do will be along the horizontal (time) axis. Change the
Zoom to 500%, and the sine wave anomaly will be more obvious.
Agilent 33500 Series Operating and Service Guide 49
