Set Up Arbitrary Waveform

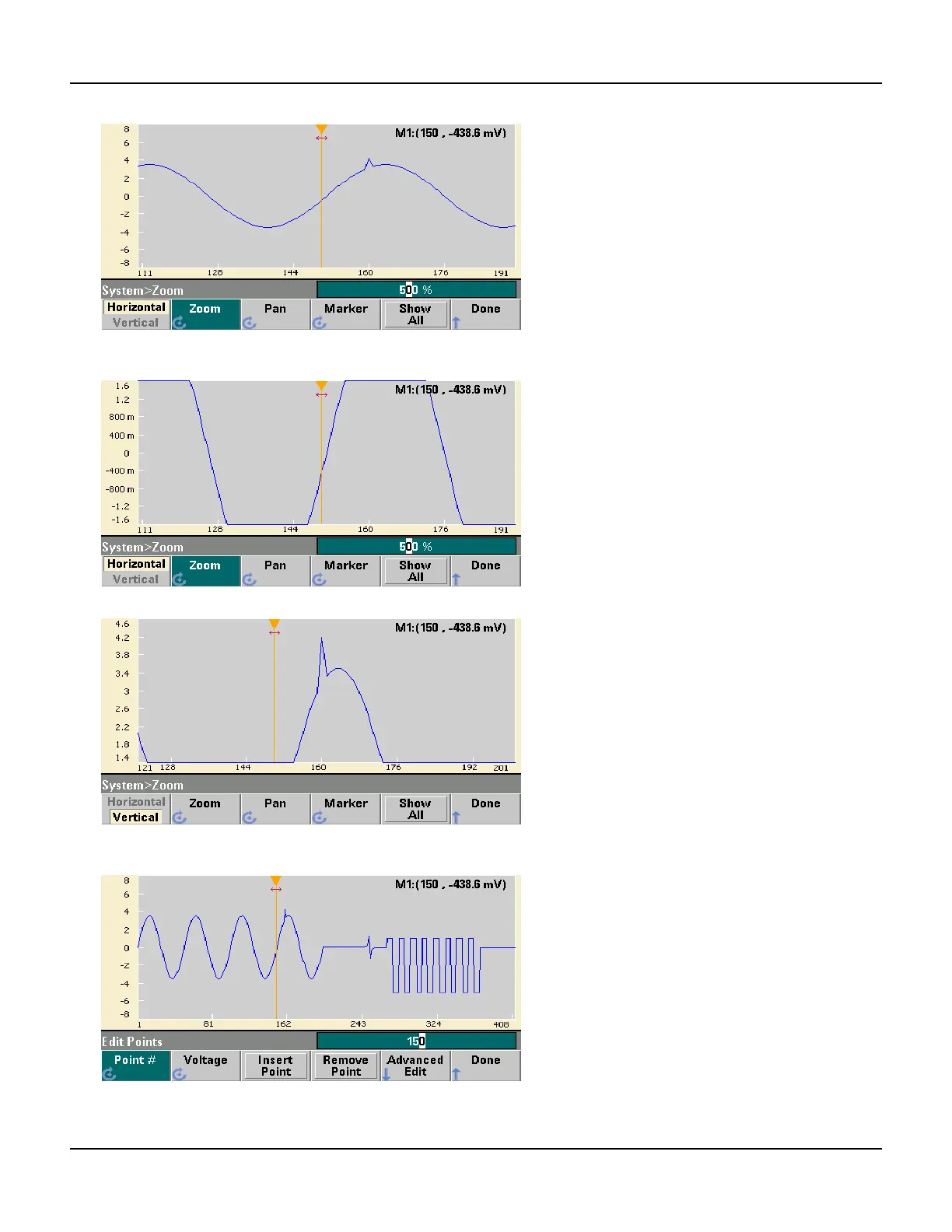

2. Now set the first softkey to Vertical to zoom vertically. Set the Zoom to 500%. Notice that we have zoomed in on
the voltage axis, but we are too low to see the 4.2 V anomaly in the sine wave.
3. Press Pan and set the Pan to 3 V in order to move higher on the waveform. The 4.2 V point is now clearly visible.
4. To see the entire waveform again, press Show All. Then press Done and Done again to return to the Edit
Points screen.
50 Agilent 33500 Series Operating and Service Guide
