Set Up Arbitrary Waveform
Insert, Remove, Copy and Paste Points

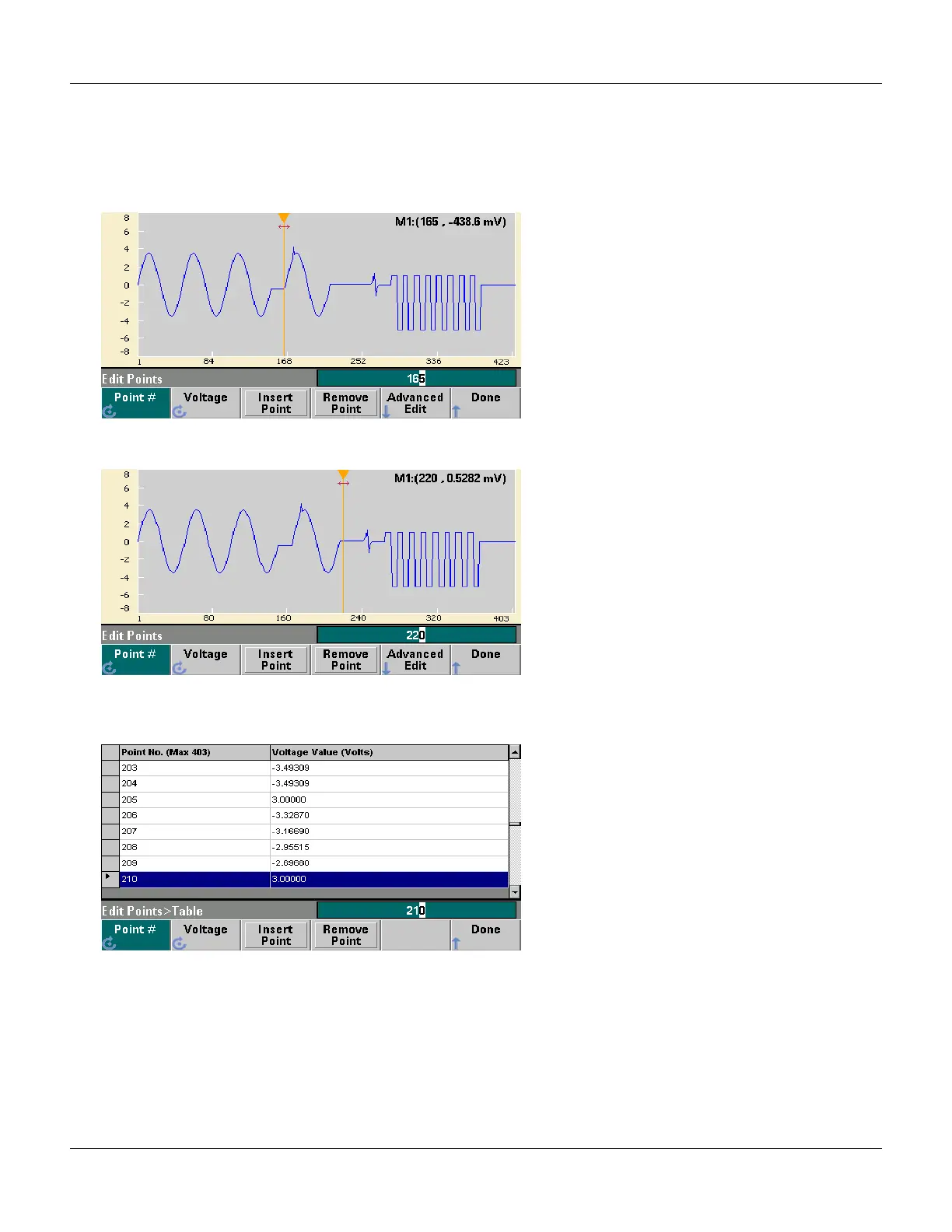

1. Press Insert Point 15 times and watch the display carefully. You will see 15 new waveform points at the same
voltage level.
2. Change the Point # to 220 and press Remove Point 20 times, watching the display carefully as you do so in
order to see the points being removed from the waveform.
3. You can also edit points by using a table of voltages. Press Advanced Edit and then Edit Via Table. Set Point #
to 200, and then set the Voltage for point 200 to 3 V. Use the knob to move between rows and set the Voltage
for points 205 and 210 to 3 V. Press Done.
Agilent 33500 Series Operating and Service Guide 51
