Set Up Arbitrary Waveform

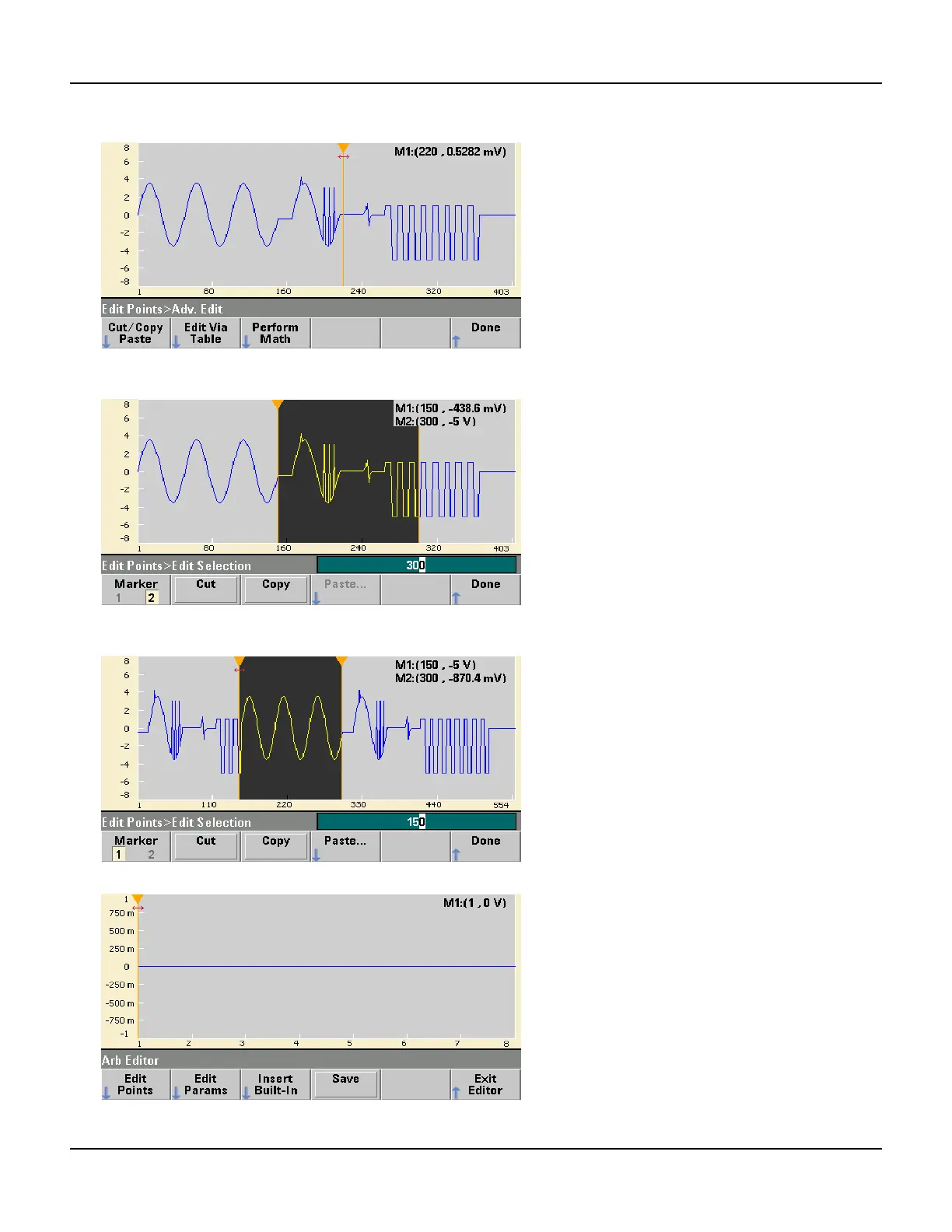

4. Notice the three 3 V spikes that you just made in the waveform at points 200, 205, and 210.
5. Press Cut/Copy Paste, and set Marker 1 to 150. Then press the first softkey and change the Marker to Marker
2. Set Marker 2 to 300. The range defined by the markers is now highlighted in black.
6. Press Copy, then Paste, and then At Start. Notice that section you copied is now duplicated at the beginning of
the waveform.
7. Now press Paste and At End. The same section of the waveform now also appears at the very end.
52 Agilent 33500 Series Operating and Service Guide
