Set Up Arbitrary Waveform

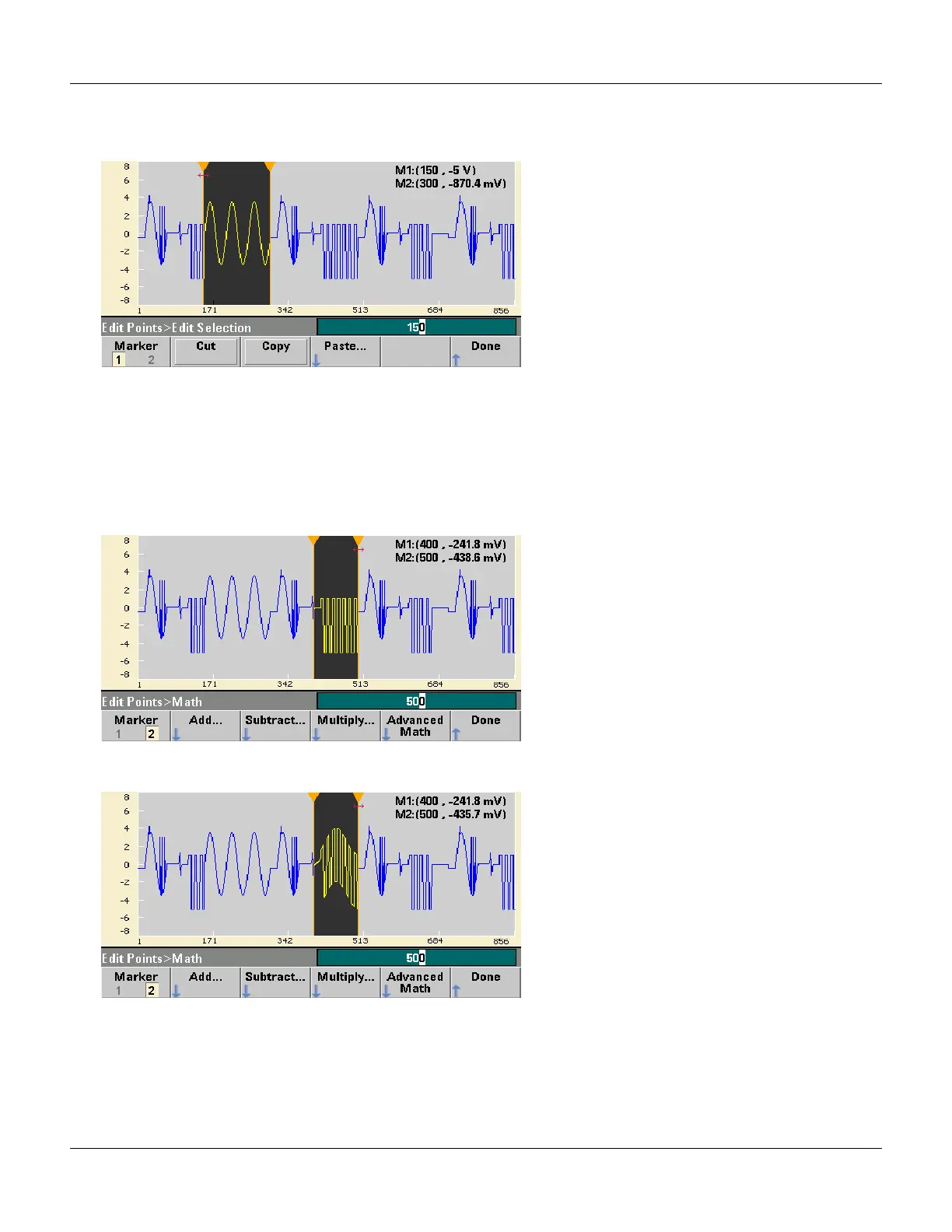

8. Now press Paste and change the Point # to 500. Then press OK, and the same portion of the waveform will be
pasted in at point 500. Press Done to leave the Cut/Copy Paste menu.
Perform Math
The embedded waveform editor allows you to perform mathematical operations on the waveform. First you set
markers to define the range of the waveform that you want to modify. You can then add, subtract or multiply that por-
tion of the waveform by another waveform, or you can transform the waveform in ways that do not involve other wave-
forms.
1. Press Perform Math. Set Marker 1 to 400 and Marker 2 to 500.
2. Press Add, then select Haversine and OK. Set the Amplitude to 3 V, the Offset to 0 V, and press OK. Notice that
the highlighted section now rises in the middle as a result of the Haversine addition.
Agilent 33500 Series Operating and Service Guide 53
