Output Configuration

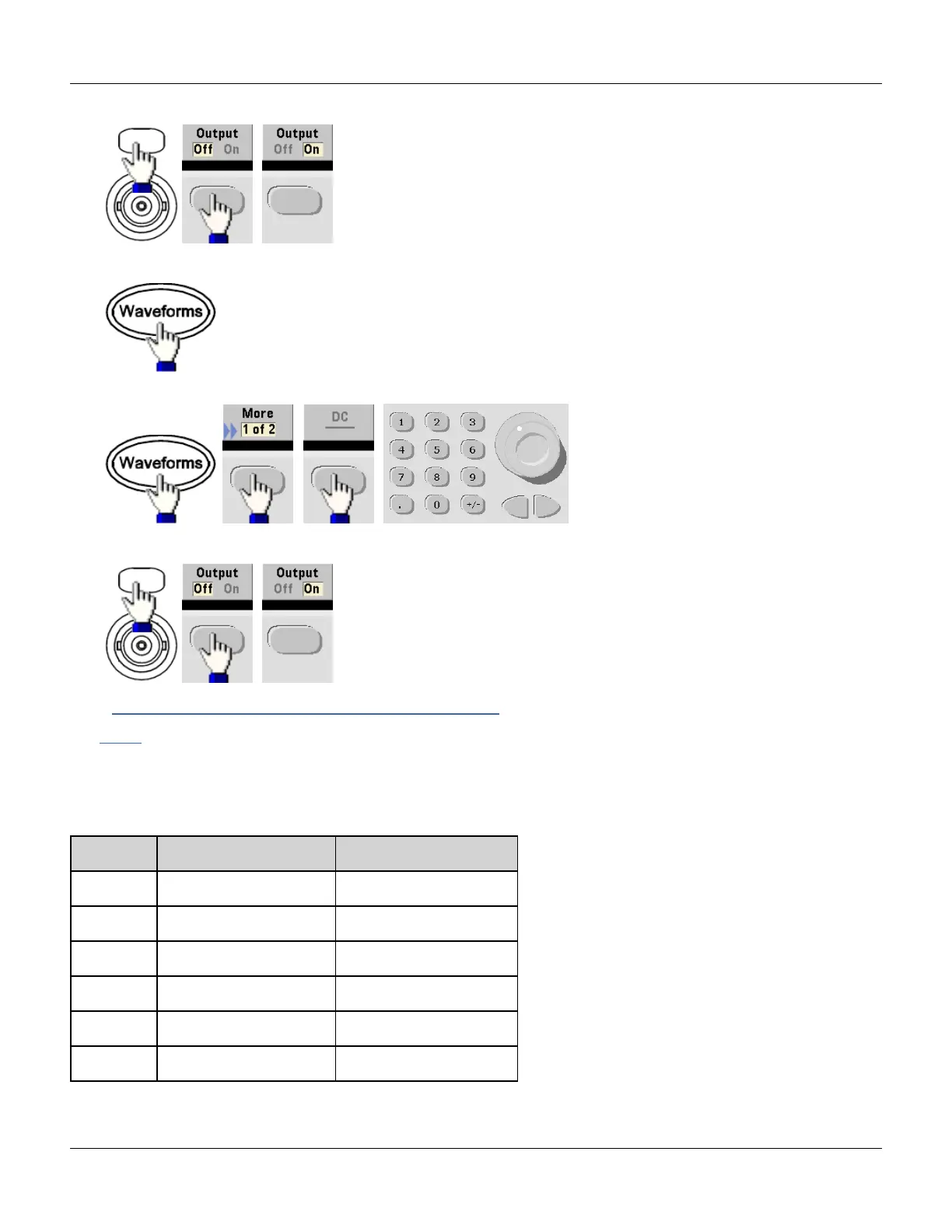

To select another waveform:
l For example, to specify a DC signal:
To produce the DC output:
l SCPI: FUNCtion {SIN|SQU|RAMP|PULSe|NOIS|DC|PRBS|ARB}
The APPLy command configures a waveform with one command.
Output Frequency
As shown below, the output frequency range depends on the function (default frequency 1 kHz for all functions).
Function Minimum Frequency Maximum Frequency
Sine 1 µHz 30 MHz
Square 1 µHz 30 MHz
Ramp/Tri. 1 µHz 200 kHz
Pulse 1 µHz 30 MHz
PRBS 1 µbps 50 Mbps
Arbitrary 1 µSa/s 250 MSa/s
