Pulse Width Modulation (PWM)

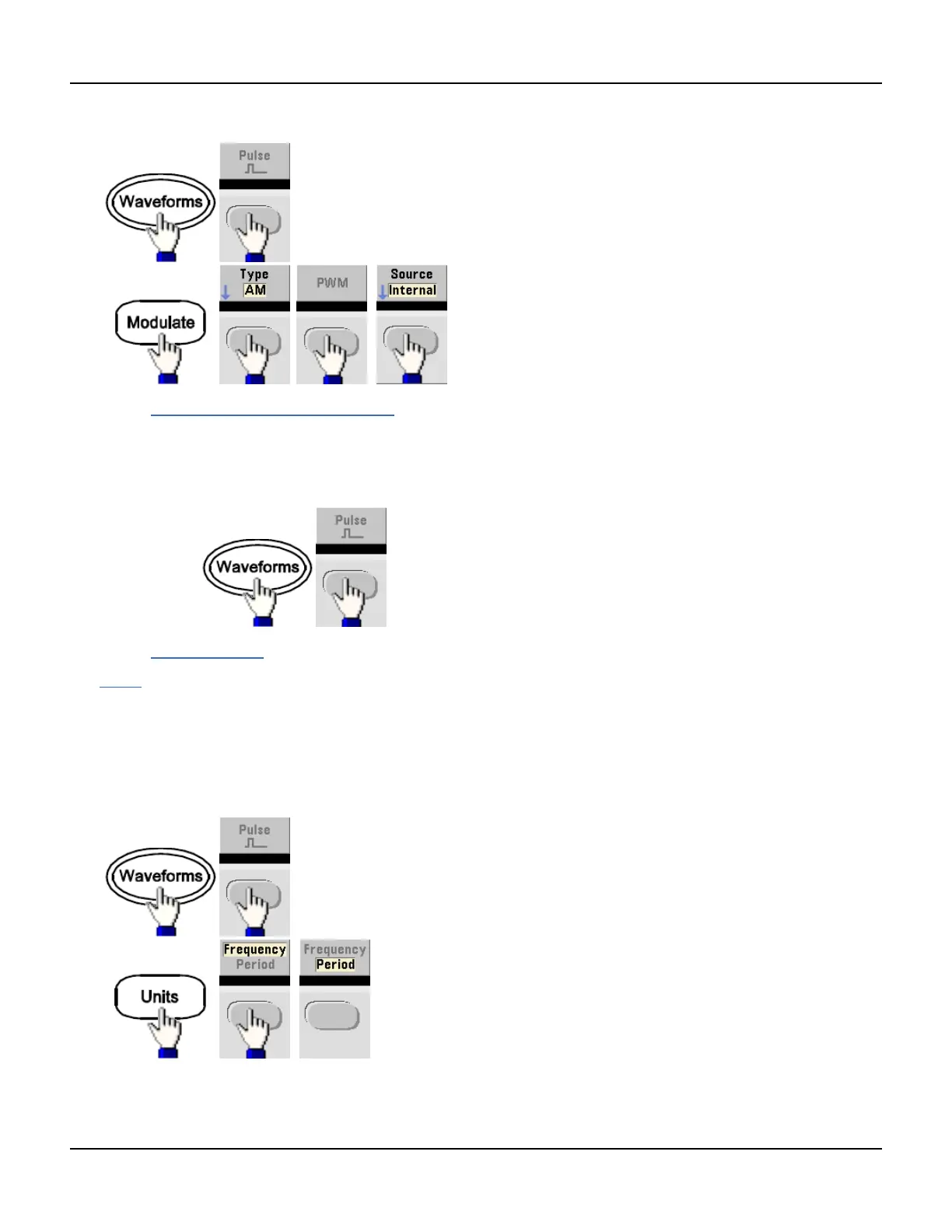

l Front Panel:
l SCPI: PWM:SOURce {INTernal|EXTernal}
Pulse Waveform
l Pulse is the only waveform shape supported for PWM.
l
Front Panel:
l SCPI: FUNCtion PULSe
The APPLy command configures a waveform with one command.
Pulse Period
The range for the pulse period is from the reciprocal of the instrument's maximum frequency up to 1,000,000 s
(default 100 µs).
l Front-Panel:
Select the pulse function, press and toggle Frequency/Period to Period. Then use the knob or keypad to enter
86 Agilent 33500 Series Operating and Service Guide
