Chapter 7 Plug-in Modules
44473A 4 x 4 2-Wire Matrix Switch Module
4
7
44473A Wiring Information
Use the Agilent 44483A Terminal Block to make connections to the
44473A. One 44483A is supplied with the module.
The terminal block includes a screw terminal that connects external

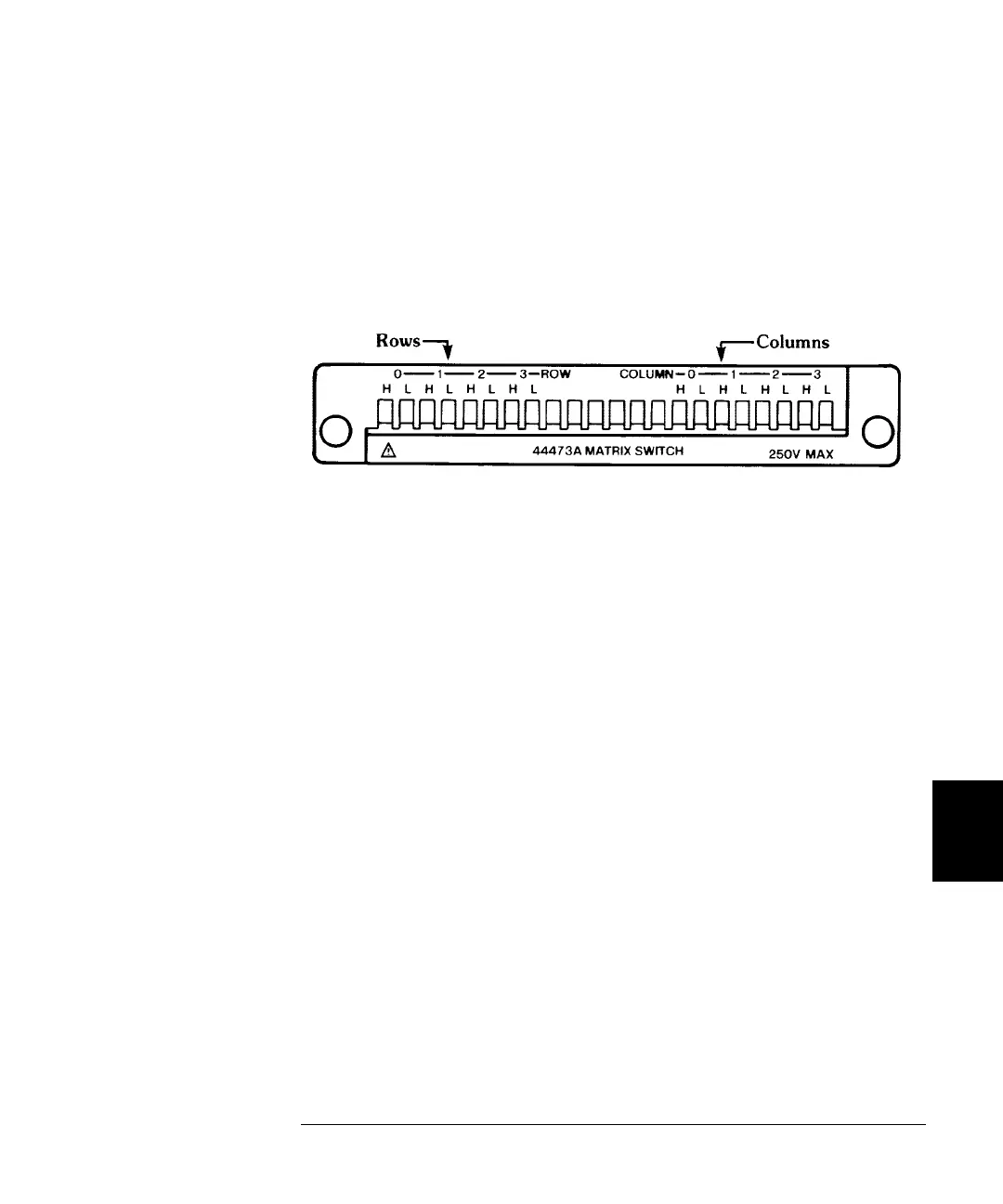

wiring to the 44473A. The screw terminal is shown below. Additional
information about the terminal block is given on page 285.
