250
Chapter 7 Plug-in Modules
44474A 16-Bit Digital I/O Module
7
44474A Wiring Information
Use the Agilent 44484A Terminal Block to make connections to the
44474A. One 44484A is supplied with the module.
The terminal block includes a screw terminal that connects external

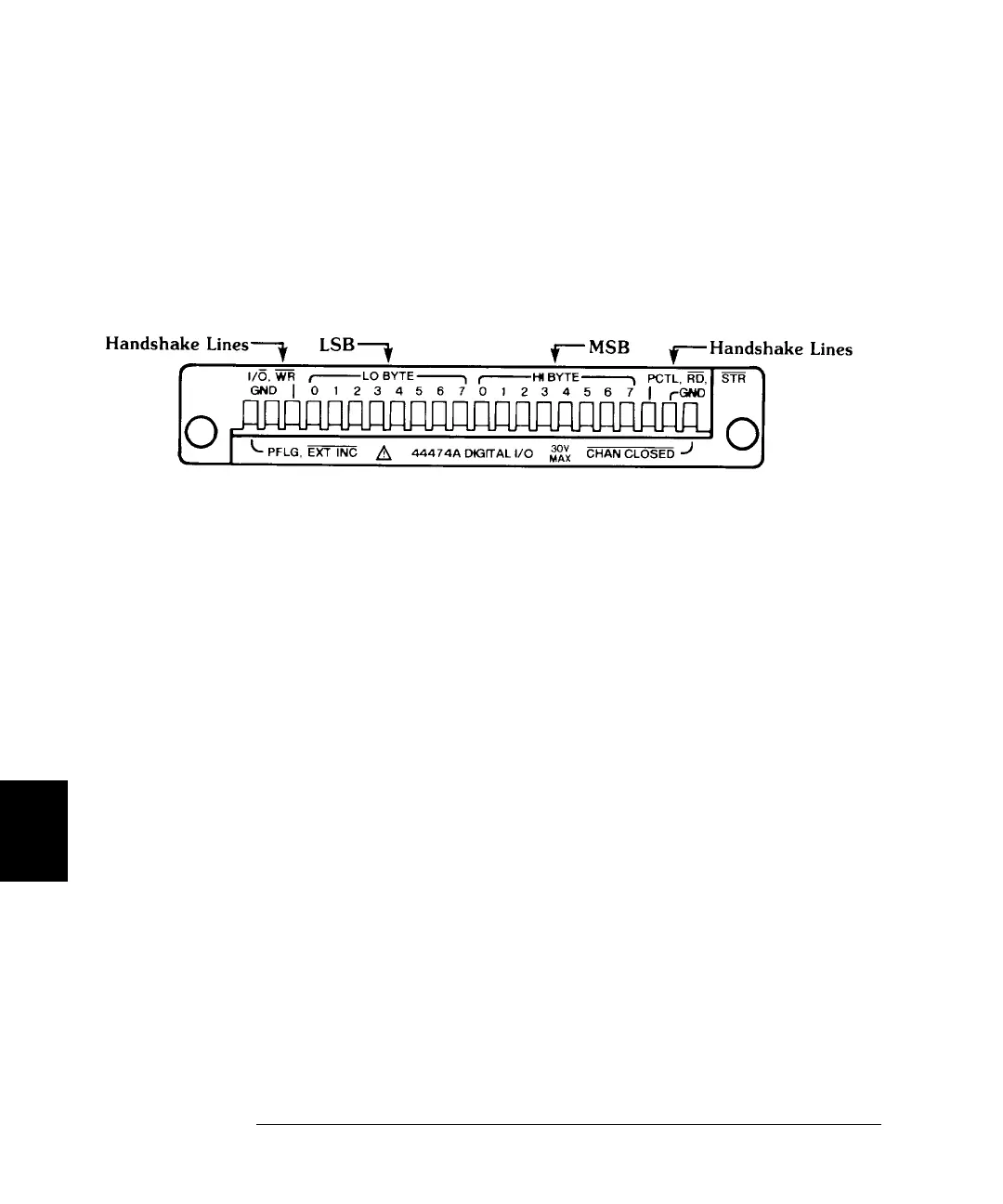

wiring to the 44474A. The screw terminal is shown below. Additional
information about the terminal block is given on page 285.
