The Display at a Glance

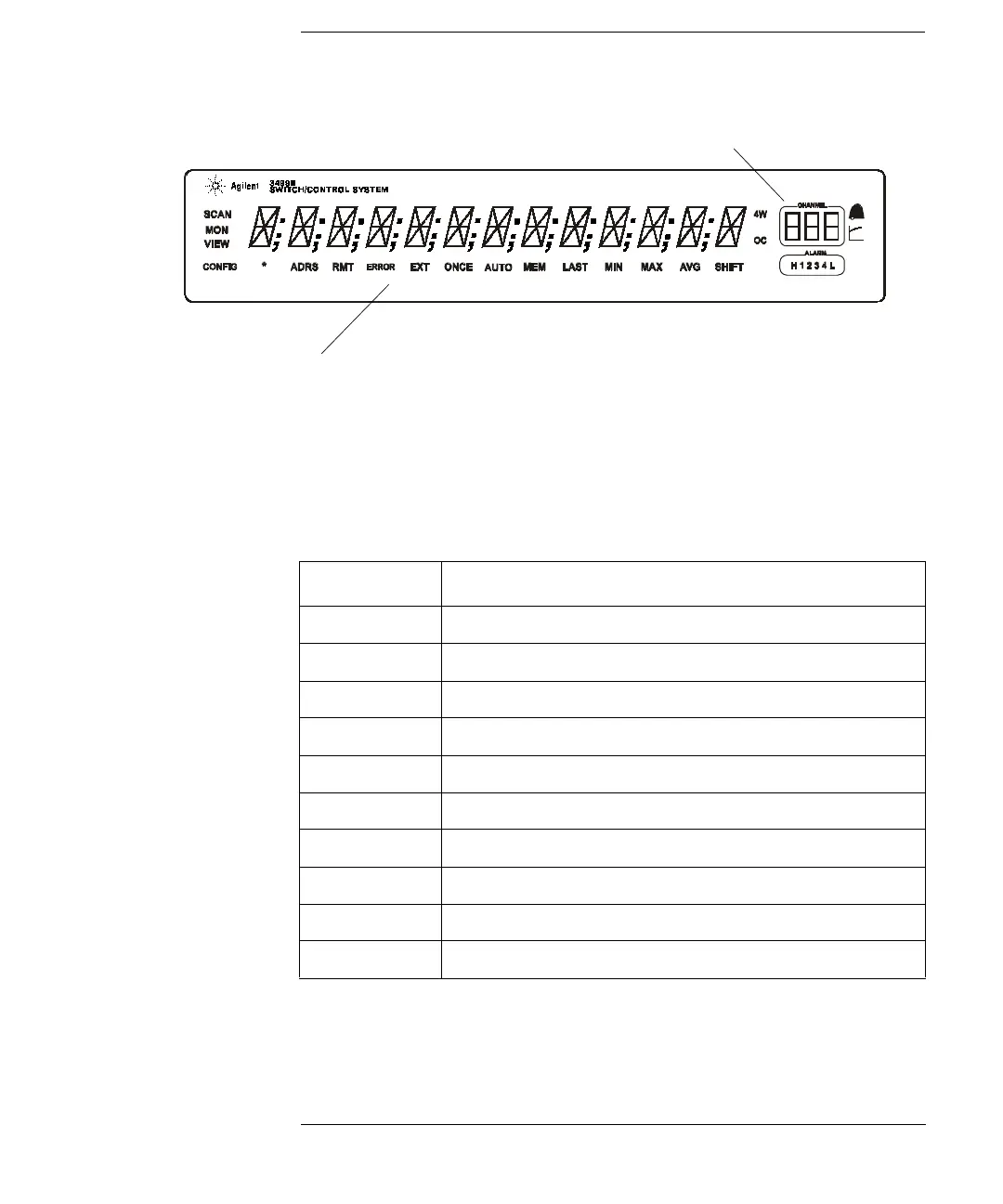

The display is divided into several areas. The channel and slot number is
always displayed on the right corner of the display. The main area,
which is in the center of the display, is primarily used to display channel
status (open or closed), information messages, menu items, prompt infor-
mation, error messages, and so on. Around the display are annunciators
to indicate various states of the instrument operation. The annunciators
are summarized below.
Other annunciators in the display are not used in the Agilent 3499A/B/C
system.
Channel/Slot Number
Annunciators
Annunciator Indication
SCAN Scan is initiated.
MON Instrument is in monitor mode.
VIEW Scan list, errors or relay cycle counts are being viewed.
CONFIG Any configuration key has been pressed.
* Instrument is advancing a scan step.
ADRS Instrument is active on the remote interface.
RMT Instrument is in remote mode.
ERROR Error queue is not empty.
EXT Scan is waiting for external trigger source.
SHIFT Shift key has been pressed.
