Chapter 3 119
Making EDGE (with GSM) Measurements
Making the EDGE ORFS Measurement
Making the Measurement
NOTE The factory default settings provide a GSM compliant measurement.
For special requirements, you may need to change some of the settings.
Press
Meas Setup, More (1 of 2), Restore Meas Defaults to return all
parameters for the current measurement to their default settings.
Select the desired ARFCN, center frequency, timeslot, burst type, and
TSC (Training Sequence Code) as described in the section titled
“Changing the Frequency Channel” on page 24.
When
Training Sequence is selected as the burst sync for this
measurement, set the
Timeslot selection to determine which timeslot to
measure. For example, if
Timeslot is set to 2, the measurement will be
made on the timeslot number 2. Be careful when adding delay in the
Trigger setup, as this measurement does not take into account trigger
delay when checking for a valid burst. If there is sufficient delay added
(usually more than 25% of a timeslot), the burst might not be detected.
Press
Measure, Output RF Spectrum to immediately make Output RF
Spectrum the active measurement.
To change any of the measurement parameters from the factory default
values, refer to the “Changing the Measurement Setup” section for this
measurement.
Results

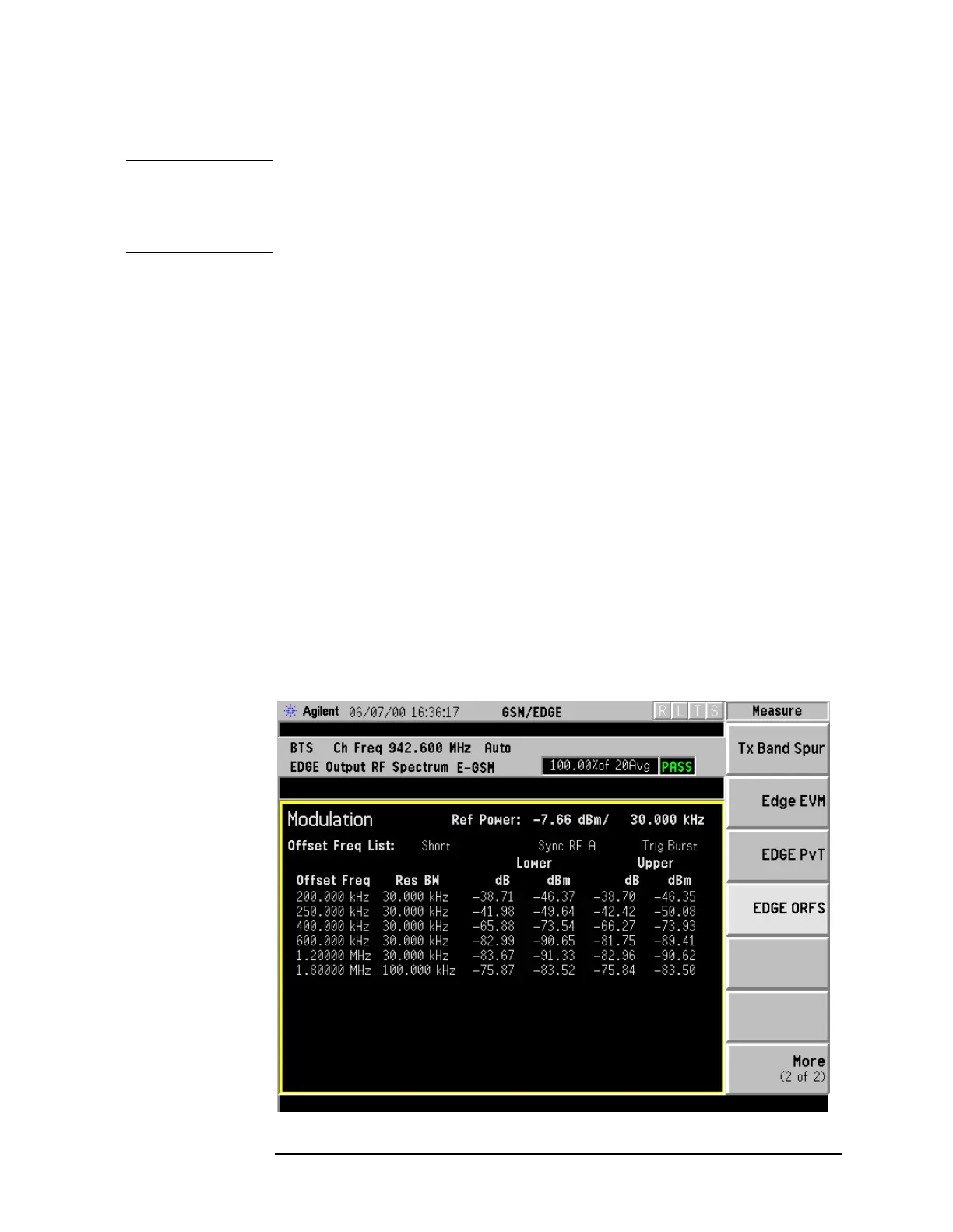

Figure 3-21 Output RF Spectrum Result (Short List) Modulation View
