Agilent Technologies E4406A VSA Series Measurement Guide

84 Chapter3
Making EDGE (with GSM) Measurements
Making the Spectrum (Frequency Domain) Measurement
Results
A display with both a spectrum window and an I/Q Waveform window
will appear when you activate a spectrum measurement. Use the
Next
Window key to select a window, and the Zoom key to enlarge a window.

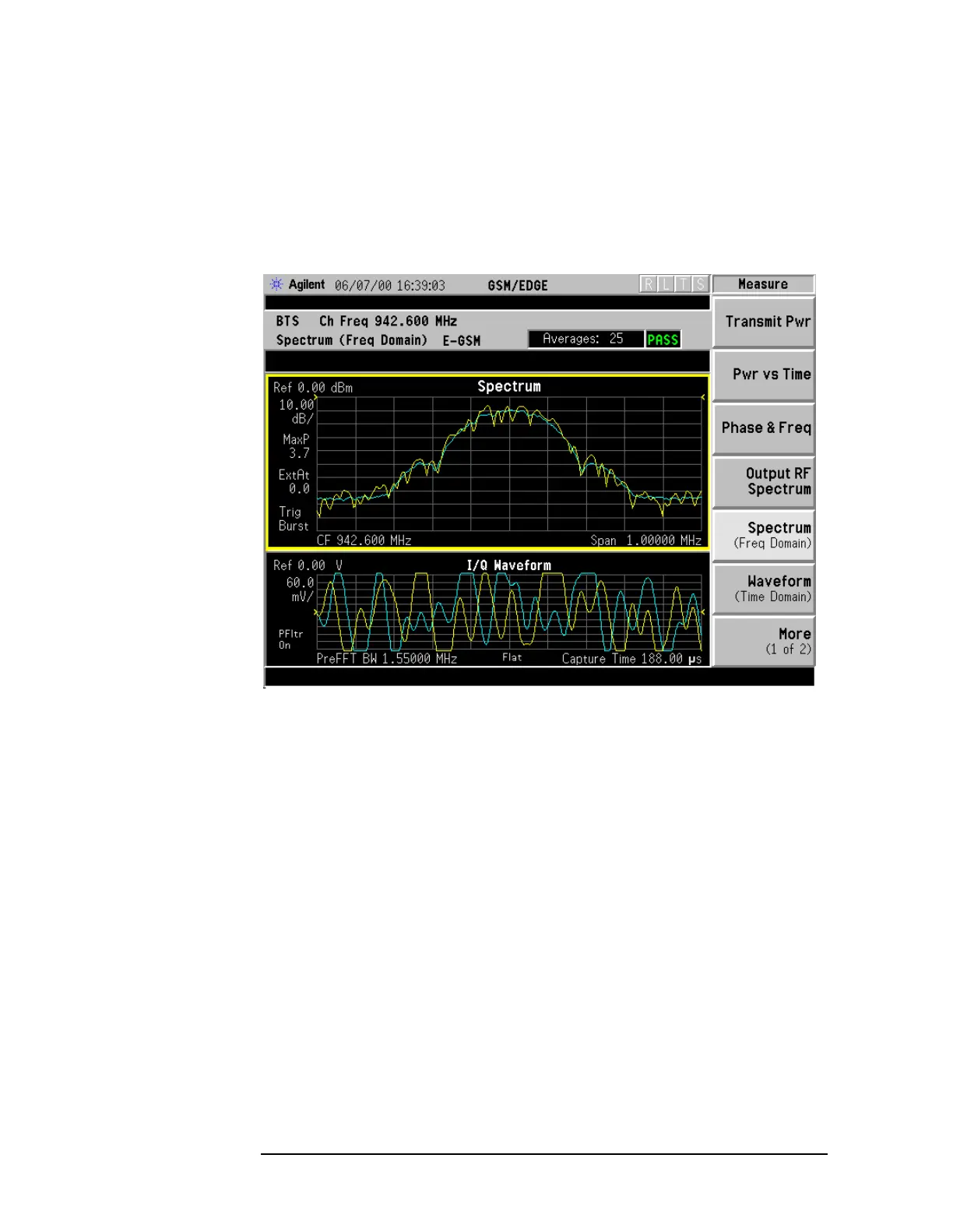

Figure 3-12 Spectrum Measurement Result- Spectrum and I/Q Waveform
