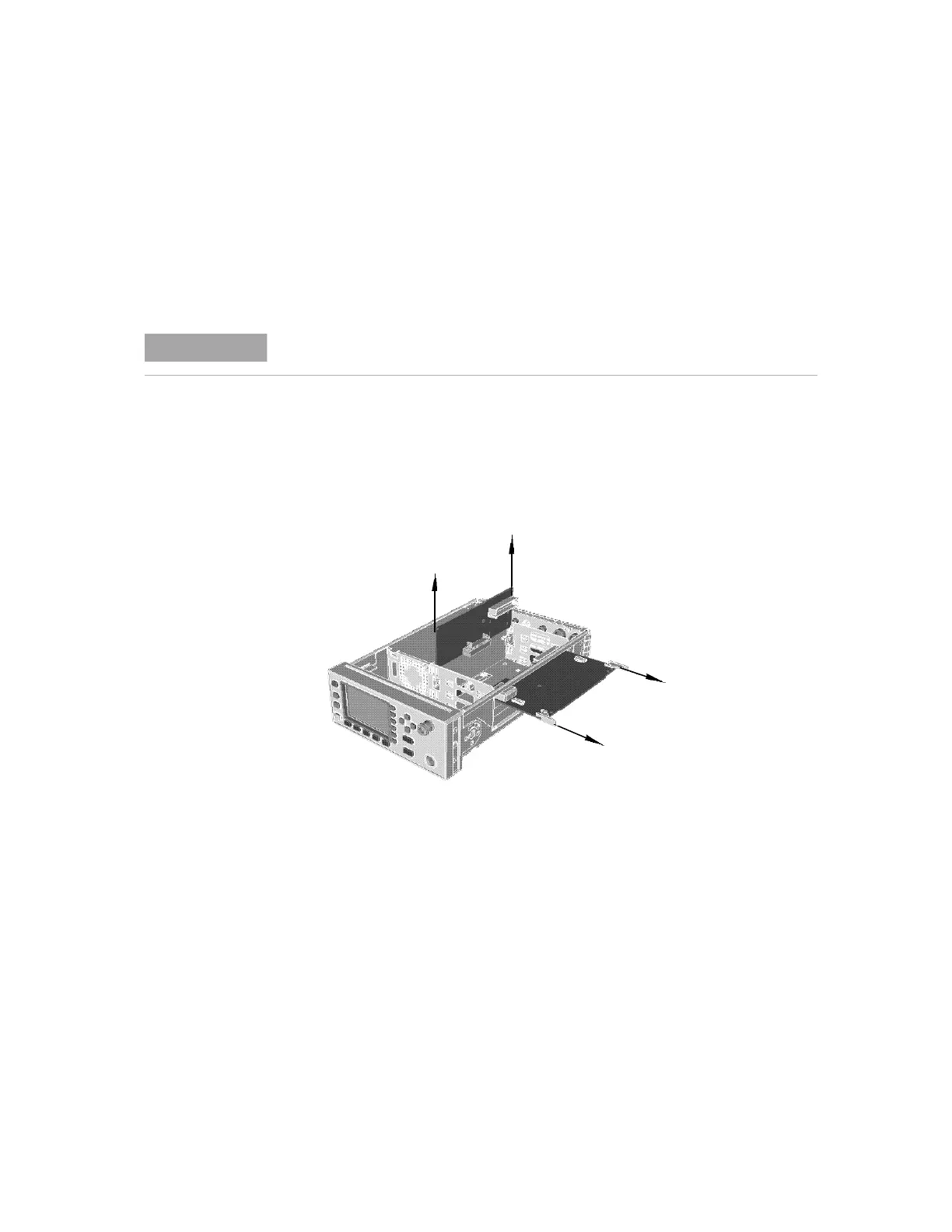

Removing the A5 Daughter or A6 Measurement Assemblies
1 Disconnect the flex circuit from measurement assembly.
2 Loosen release tabs on measurement assembly and then remove vibration
support bracket.
3 Slide out the measurement assembly from the side of the power meter.
4 The daughter assembly is removed vertically.
Take care when disconnecting the flex circuit from the measurement assembly.
