3 Adjustments
70 E4416A/E4417A Power Meters Service Guide
Measurement Uncertainty
Refer to Appendix C, Measurement Uncertainty Analysis - Power Reference
Level Test.

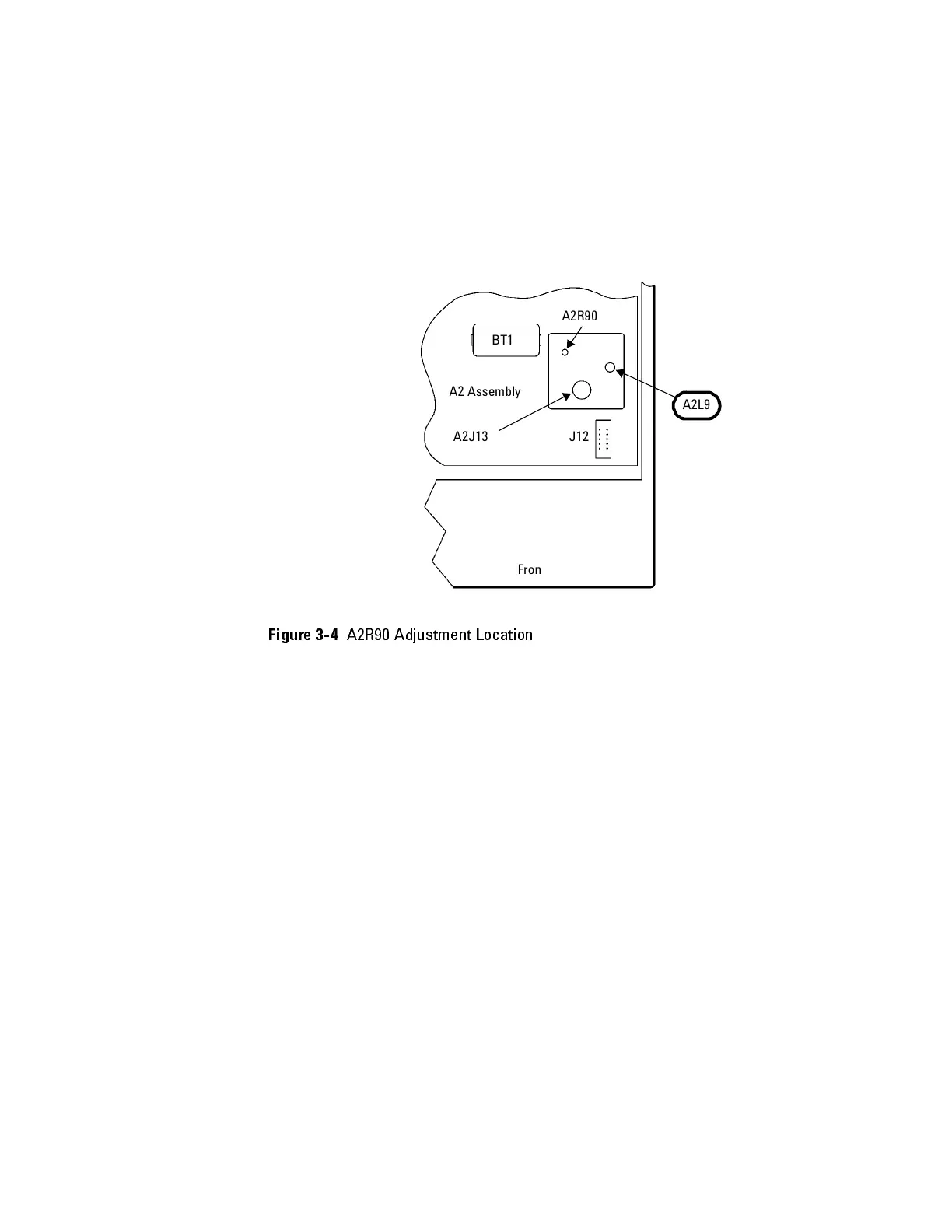

Figure 3-4 A2R90 Adjustment Location
A2 Assembly
A2J13
J12
A2R90
A2L9
BT1
Front Panel
