Agilent 1260 Infinity VWD User Manual 133
Maintenance
9
Replacing Leak Handling System Parts
Replacing Leak Handling System Parts
1 Remove the front cover to have access to the leak handling system.
2 Pull the leak funnel out of the leak funnel holder.
3 Pull the leak funnel with the tubing out of its location.
4 Replace the leak funnel and/or the tubing.
5 Insert the leak funnel with the tubing in its position.
6 Insert the leak funnel into the leak funnel holder.
7 Replace the front cover.

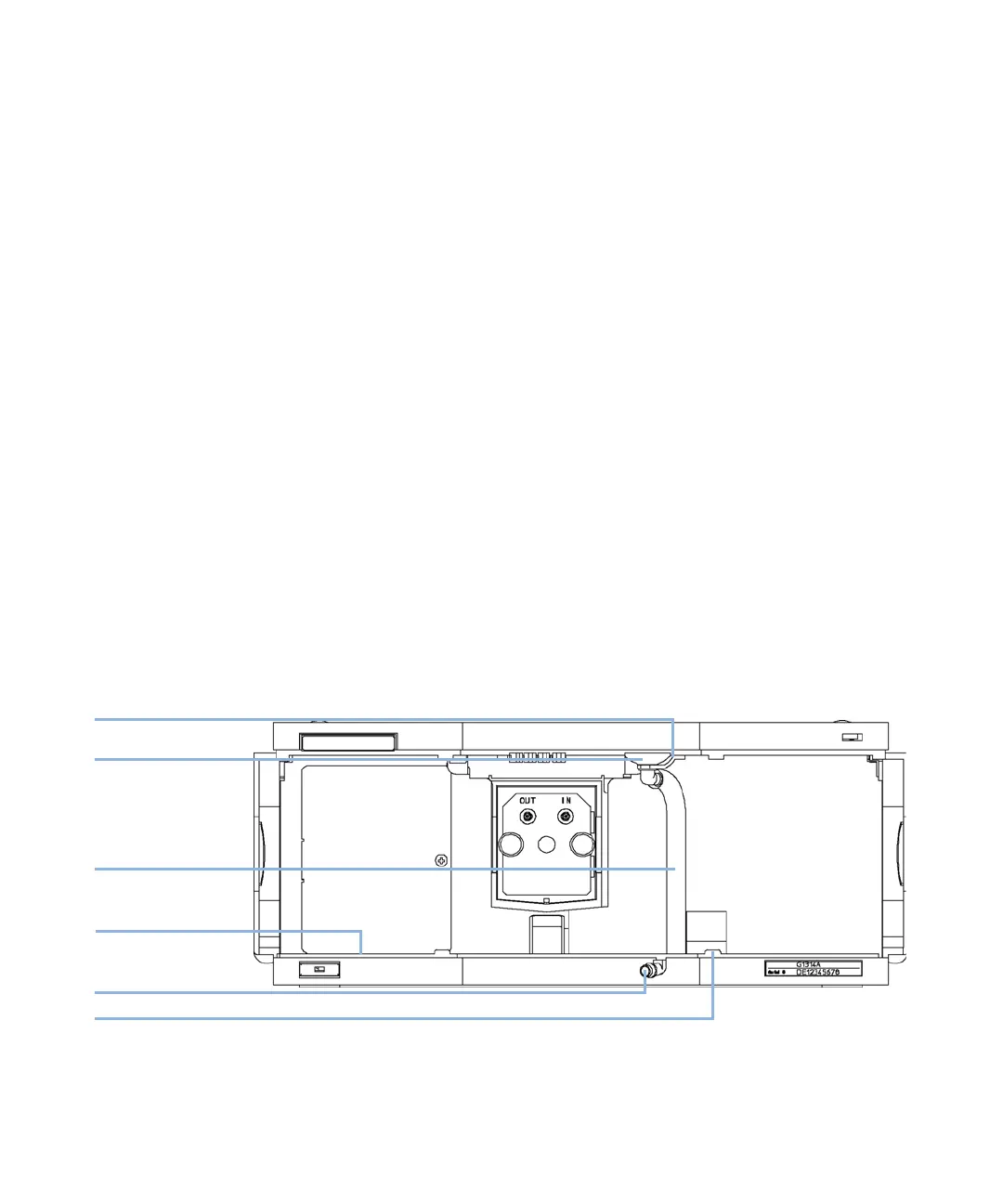

Figure 43 Replacing Waste Handling System Parts
When If the parts are corroded or broken.
Tools required None
Parts required # p/n Description
1 5041-8389 Leak funnel holder
1 5041-8388 Leak funnel
1 5062-2463 Corrugated tubing, PP, 6.5 mm id, 5 m
AZV`[jccZa]daYZg
AZV`[jccZa
AZV`ijW^c\
AZV`eaVc
LVhiZdjiaZi
AZV`hZchdgVhhZbWan
