Special Settings of the Detector
Analog Output Settings
1 To change the Output Range of the analog outputs select VWD Control.
2 To change the offset and the attenuation select VWD Signal > More.
3 Change the values if required.

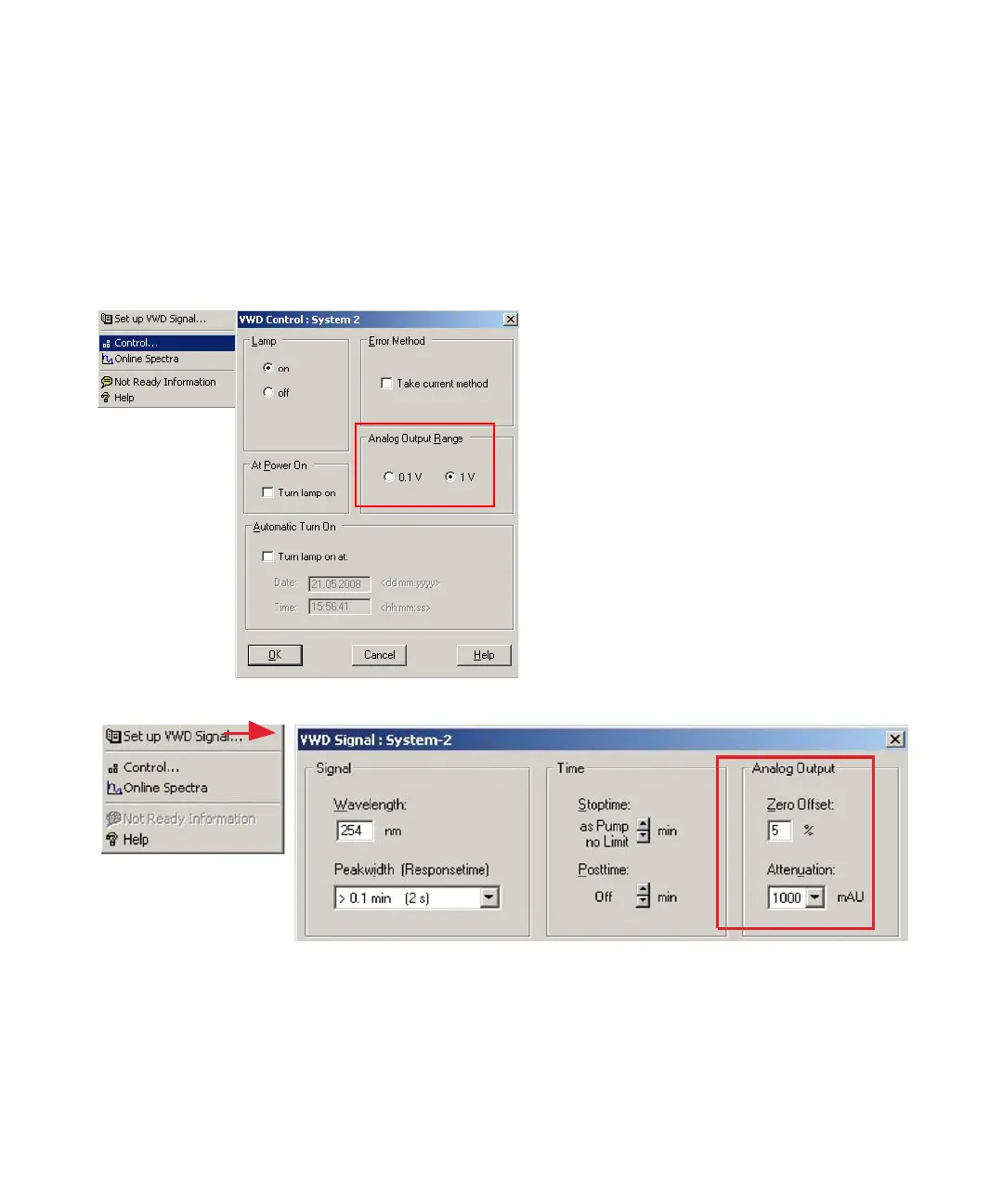

Figure 26 Analog Output Settings
• Analog Output Range: can be set to either 100 mV
or 1 V full scale.
• Zero Offset:can be set to either 100 mV or 1 V full
scale.
• Attenuation Limits: 0.98 to 4000 mAU at discrete
values for either 100 mV or 1 V full scale.
Figure 27 Analog Output Settings
