20 Agilent 1100 Series Fraction Collectors User’s Guide
1 Configuration and Operation of the Fraction Collector
Delay volumes and delay calibration
9 When the calibration run has finished, click OK. The Calibration Results
panel (see Figure 6) is displayed.
The Calibration Results panel contains a results table and the acquired
chromatograms from the detector(s) and the fraction collector delay sensor.
The results table contains
• the name and serial number of the detector,
• the current delay volume (stored in the fraction collector configuration),
• the calculated delay volume from the calibration.
You can click the Print button to print the Calibration Results panel.
10 If you want to store the calculated delay volume in the fraction collector
configuration, click the Calibrate button. A confirmation dialog box is

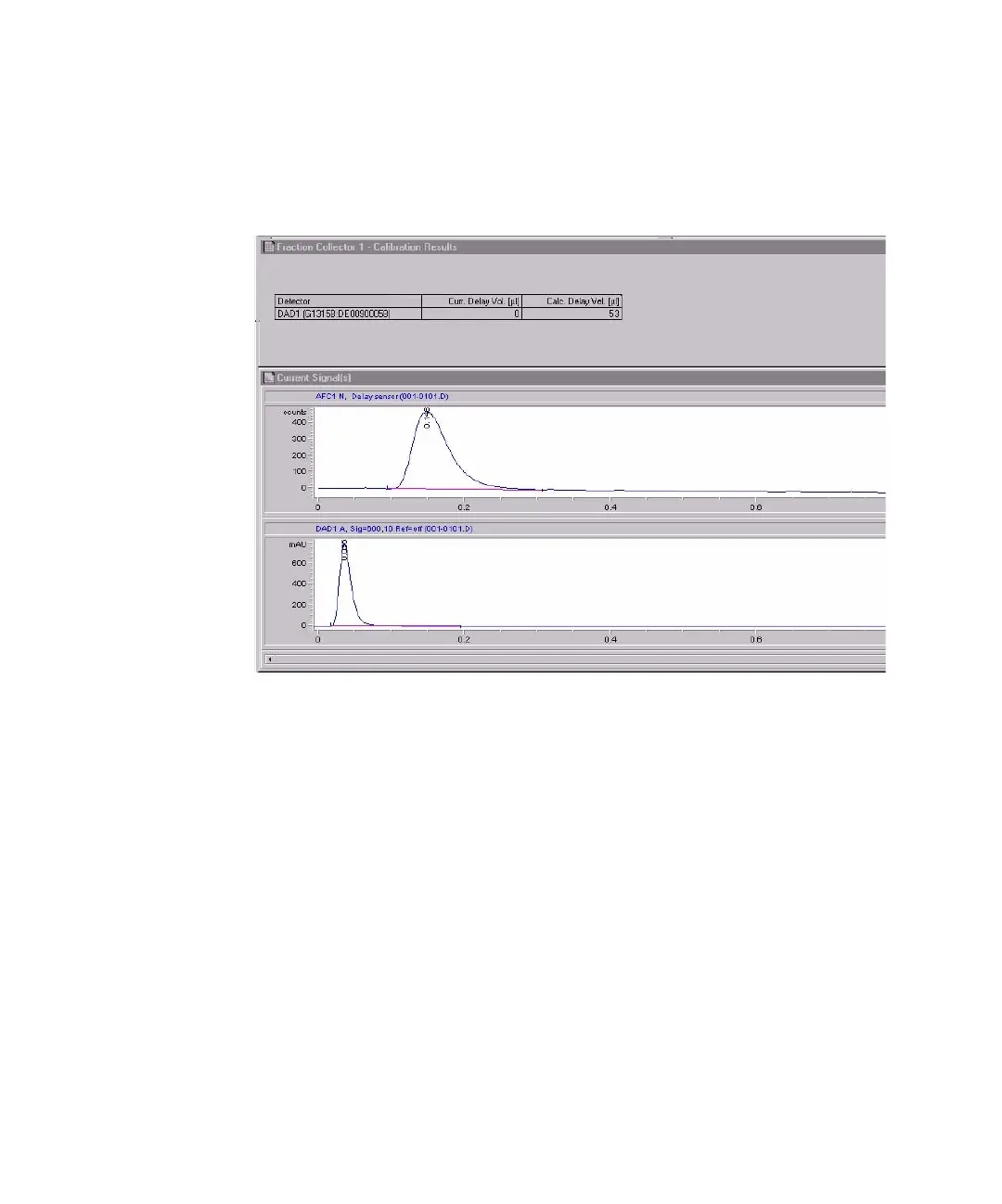

Figure 6 Delay Calibration Results Panel
