1260 Infinity II Flexible Pump User Manual 109
6 Troubleshooting and Diagnostics
Pump Leak Rate Test
Evaluation:
The result as well as the applied limits are displayed after the automatic
evaluation. The limits are:
• The allowed leak limit for the secondary piston is ≤3µL/min
• The allowed leak limit for the primary piston is ≤30 µL/min
A report can be displayed, saved or printed by opening it with the Print Result
button at the lower right of the screen.
If the test does not pass, check the system for leaks or call a local Agilent
representative.
Figure 15 on page 109 and Figure 16 on page 110 show a typical test run.

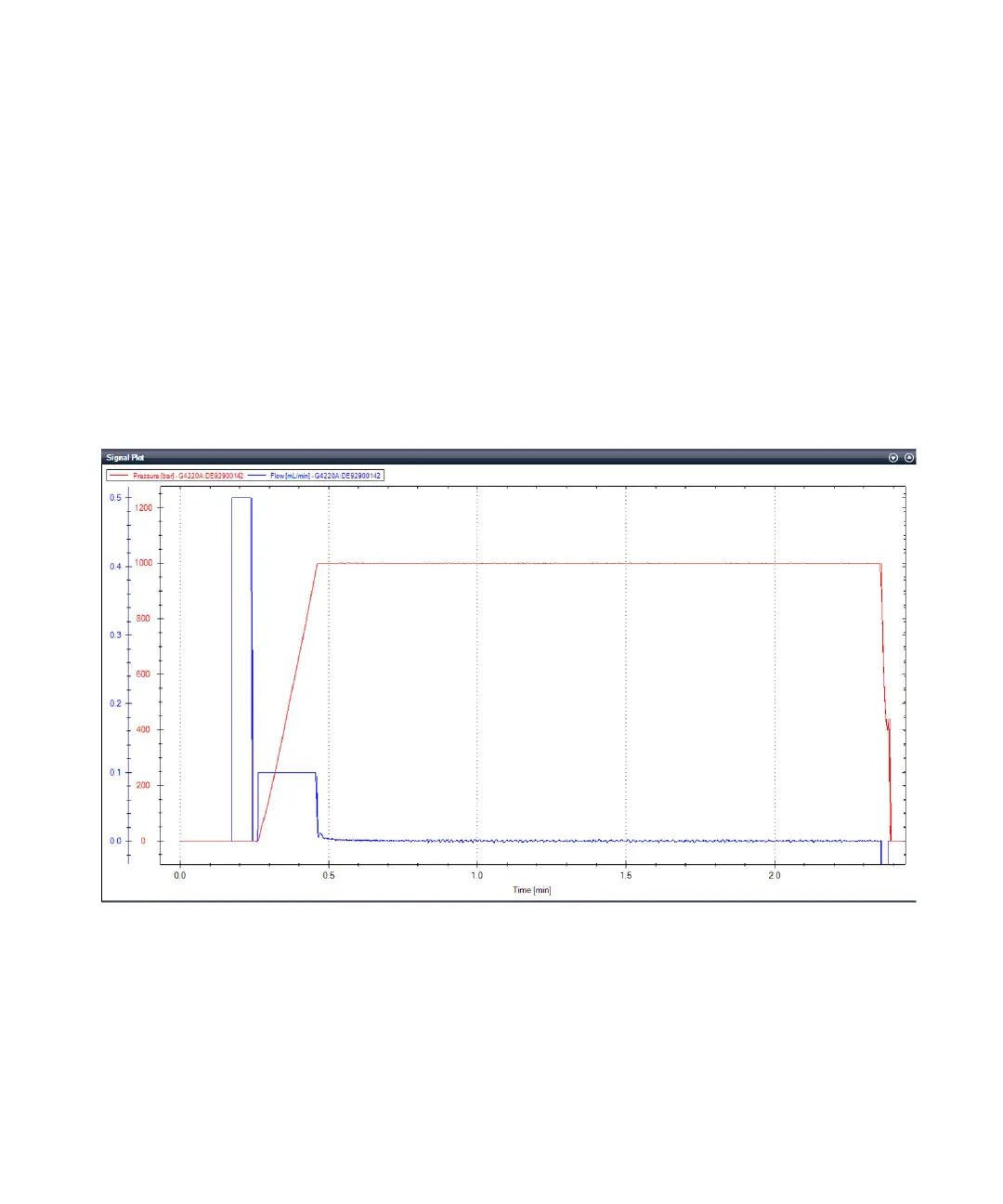

Figure 15 Static (secondary) Leak Test
