Agilent InfinityLab LC Series Diode Array Detectors User Manual 80
5 Optimizing the Detector
Optimization Overview
Light Sensitive Samples (LSS) Aperture (G7117-60101) for Max-Light
Cartridge Cell LSS 10mm

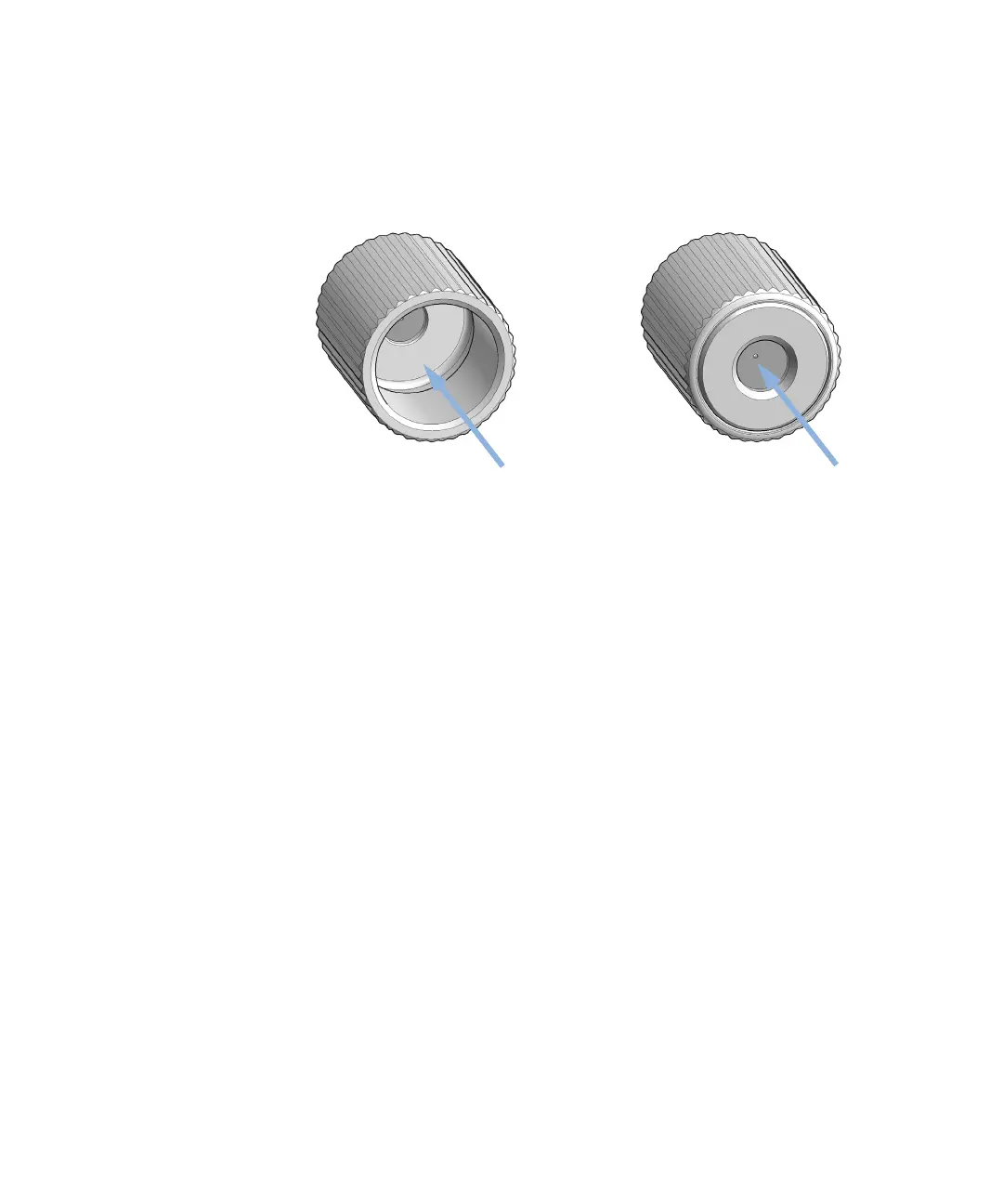

Figure 21 Aperture G7117-60101
• The Aperture should be installed for light-sensitive samples, which are likely to
undergo photodegradation.
• The Aperture reduces the intensity of the light entering the cell and thus limits
the photodegradation effects.
• The use of the Aperture increases the detector noise; for this reason, the use
of the aperture is recommended for the light-sensitive samples only.
• The flow cell performance without the installed Aperture is the same as of the
standard Max-Light Cartridge Cell 10 mm.
To install the Aperture, simply screw it on the light inlet of the Max-Light Cartridge
Cell LSS ( 10 mm, V(σ) 1.0 µL) (G7117-60020). Do not apply any tools to affix the
Aperture. Finger-tight fixation is enough. Make sure that the Aperture is aligned
with the light path and does not obstruct the light path (not tilted in relation to the
light axis). Check that after installation, the light intensity is approximately 10 %
of the original.
Store the Aperture in a clean environment protected from dust. During
installation and deinstallation wear powder-free gloves to protect the Aperture
from possible contamination.
When performing detector tests in Lab Advisor, remove the Aperture.
Aperture is not compatible with other Max-Light Cartridges. It can only be
installed on the Max-Light Cartridge Cell LSS ( 10 mm, V(σ) 1.0 µL)
(G7117-60020).
