Agilent Technologies Intuvo 9000 - Using a Y-Cable in a Setup (Gc;Msd;Data System;Headspace Sampler); GC; External Events (Unspecified, Non-Agilent Instrument)

104 Agilent Intuvo 9000 GC Installation
B Cabling Diagrams and Remote Start/Stop

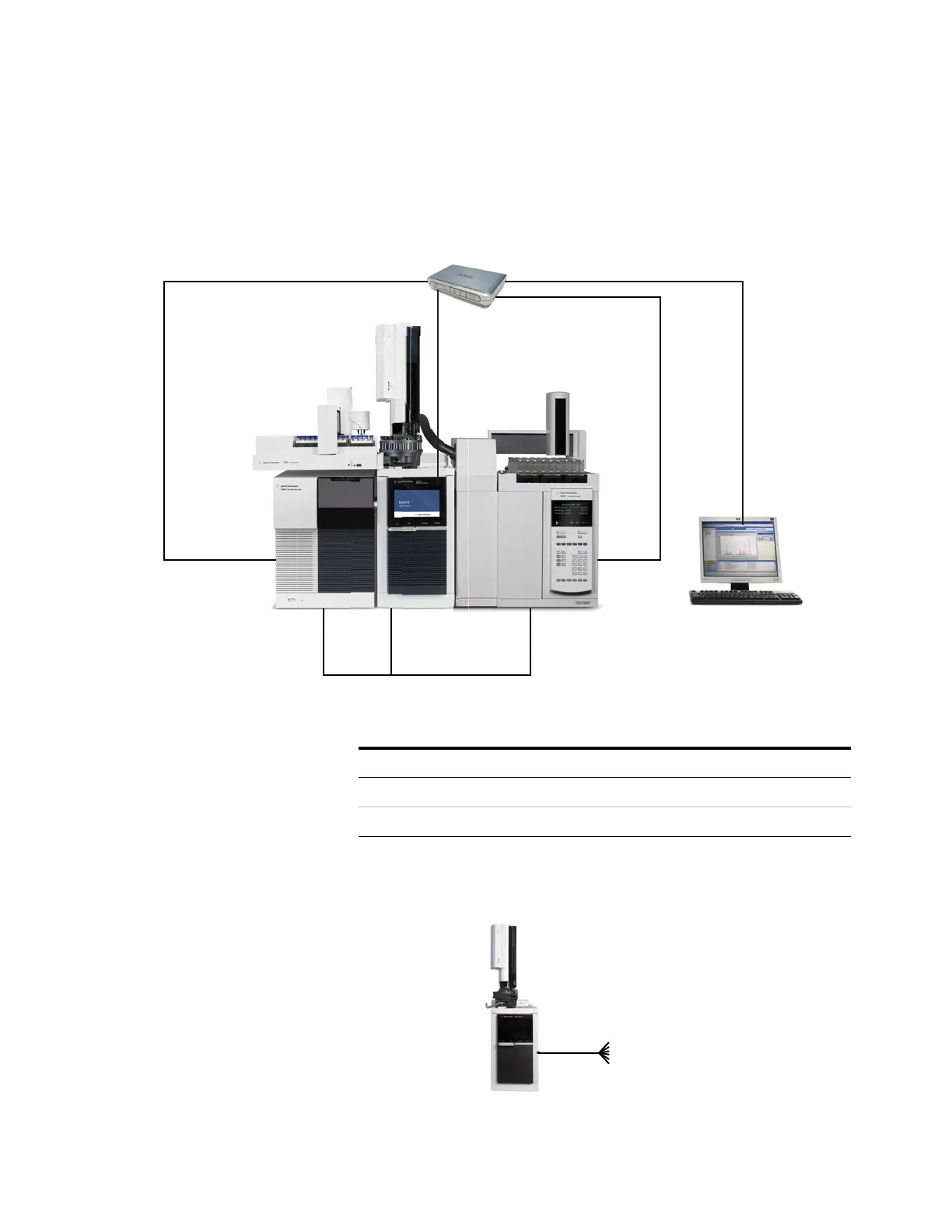

Using a Y-Cable in a setup (GC/MSD/Data System/Headspace
Sampler)
GC / External Events (unspecified, non-Agilent instrument)
LAN switch or hub
1. LAN cable 8121-0940
GC/ALS ComputerHS
2. APG Remote Y-Cable,
G1530-61200
1. LAN cable
8121-0940
1. LAN cable
8121-0940
1. LAN cable
8121-0940
MSD
Number Part number and description
1 G1530-61200, 2-m Y-cable, remote start/stop
2 8121-0940, Cable, LAN, 25 foot
GC/ALS
1. External event cable,
8 pin/spade lugs,
G1530-60590
