GC / MS / Agilent data system / ALS
The communications cable used to connect a 5977B to the
9000 GC is included with the MS.
Additional cabling configurations
For additional cabling configurations, see Appendix B, “Cabling
Diagrams and Remote Start/Stop."

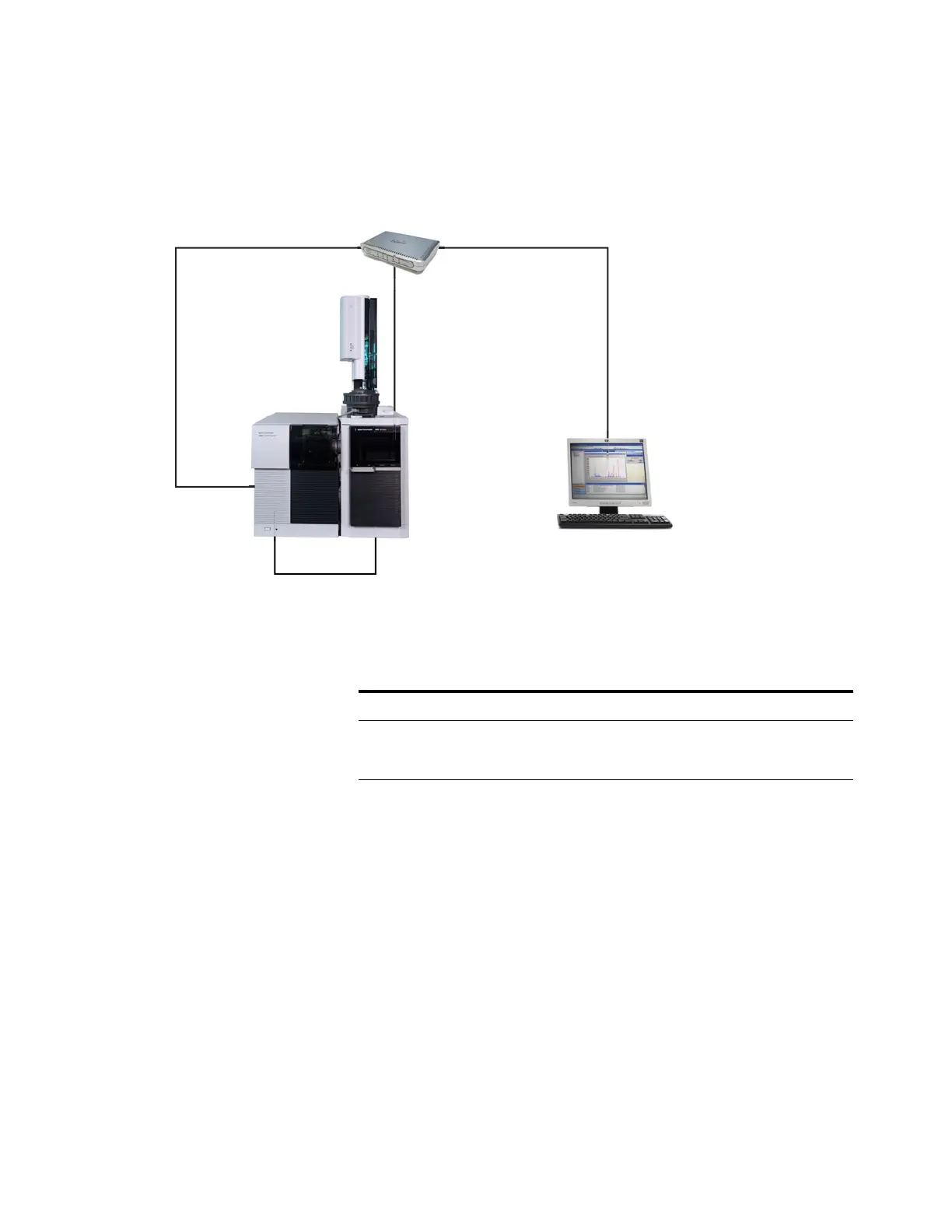

LAN switch or hub
1. LAN cable
8121-0940
GC Computer
5977B MSD
2. APG Remote Cable,
G1530-60930
1. LAN cable
8121-0940
1. LAN cable
8121-0940
Table 8 Cables for a typical GC/MSD or GC/MS system
Number Part number and description
1 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
2 8121-0940, Cable, LAN, 25 foot
